Double Row Tapered Roller Bearing NA74525/74851CD

본문 바로가기


Home > Product > Double Row Tapered Roller Bearing NA74525/74851CD
Product
Double Row Tapered Roller Bearing NA74525/74851CD
Posting date : Oct 10, 2017
Membership
Free Member Scince Sep 23, 2017
FOB Price
$499.000/Piece
Min. Order Quantity
10
Supply Abillity
100000
Port
Dalian
Payment Terms
T/T
Package
Wooden Carton
Keyword :
Category
Contact
Simon Yin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CJB
Model Number
NA74525/74851CD
HS-CODE
8482-20
Package & Delivery Lead Time
Package
Wooden Carton
Delivery Lead Time
30 Days
Detailed Description

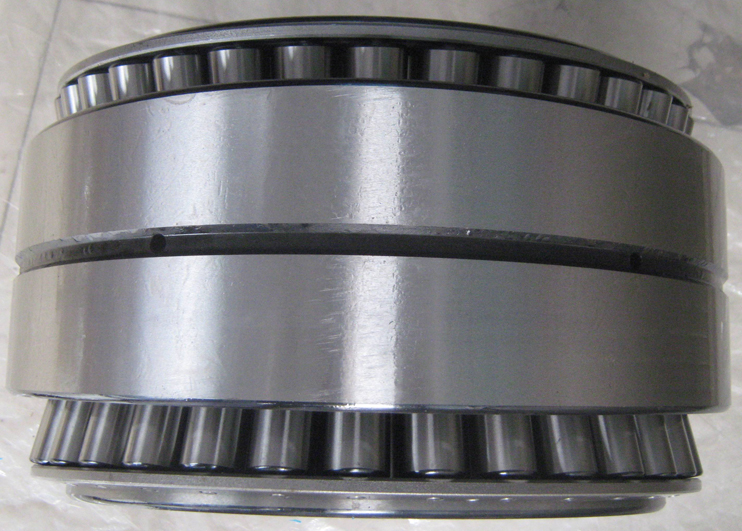

Double Row Tapered Roller Bearing NA74525/74851CD
Inner Ring: 5.250in/133.350mm
Outer Ring: 8.500in/215.900mm
Width of Outer Ring: 4.1875in/106.362mm
Width of Inner Ring: 3.1875in/80.962mm
Chamfer of Inner Ring: 0.14in/3.5mm
Chamfer of Outer Ring: 0.06in/1.5mm
Basic Dynamic Load Rating: 495KN
Basic Static Load Rating: 985KN
Gross Weight: 13.5kg

Double row tapered roller bearings can support the combined load which is mainly consisted of radial load. It can restrict the axial displacement of the shaft or housing in the two directions and thus can be used as a bidirectional locating bearing. Double row tapered roller bearings can carry heavy radial and axial loads and are stiff, the axial load carrying capacity of tapered roller bearings increases with increasing contact angle, and are easy to be mounted and dismounted. Double row tapered roller bearings can be used in a preload situation to obtain higher rigidity and better running accuracy of the shaft. CJB provides both back-to-back arrangement (using one double cup and two single-row cones) and face-to-face arrangement (using two single-row cups and one double cone ). Their main use is in gearboxes, hoisting equipment, rolling mills and machines used in the mining industry.
