Single Row Cylindrical Roller Bearing NU2338M

본문 바로가기


Home > Product > Single Row Cylindrical Roller Bearing NU2338M
Product
Single Row Cylindrical Roller Bearing NU2338M
Posting date : Oct 07, 2017
Membership
Free Member Scince Sep 23, 2017
FOB Price
$599.000/Piece
Min. Order Quantity
10
Supply Abillity
100000
Port
Dalian
Payment Terms
T/T
Package
Wooden Carton
Keyword :
Category
Contact
Simon Yin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CJB
Model Number
NU2338M
HS-CODE
8482-50
Package & Delivery Lead Time
Package
Wooden Carton
Delivery Lead Time
30 Days
Detailed Description

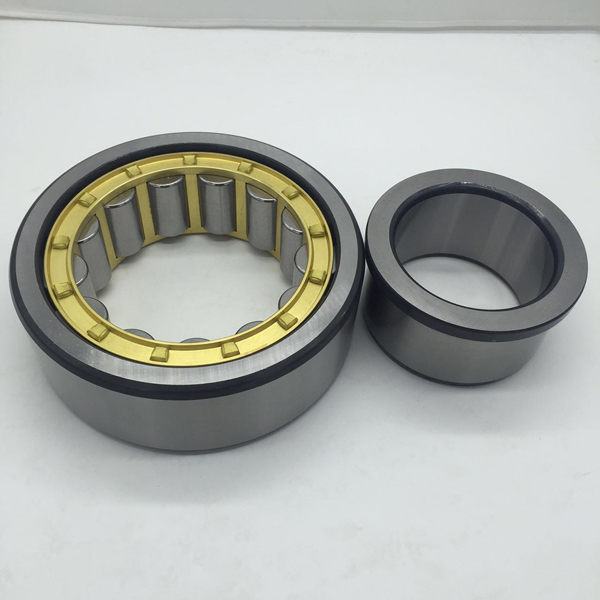

Single Row Cylindrical Roller Bearing
Part No.: NU2338M
Inner Ring: 190.000mm
Outer Ring: 400.000mm
Width: 132.000mm
Outside Diameter of Inner Ring: 240.000mm
Chamfer: 5
Basic Dynamic Load Rating: 1922KN
Basic Static Load Rating: 2805KN
Limited Speed (rpm): 1296(grease)/1680(oil)
Gross Weight: 85.2kg
Brass Cage

Single row cylindrical roller bearing consists of an inner and outer ring, rollers, and a cage; the outer and inner ring are separable; therefore, this type of bearings are easy to assemble, disassemble and applicable for high-speed rotation cases. Single row cylindrical roller bearing can carry a higher radial load capacity in comparison to same dimension ball bearing. Normally, it is not used to bear an axial load, in the case where there is a rib, the bearing can bear a slight axial load between the end of the rollers and the rib.
Depending on the existence of ribs on their rings, single row cylindrical roller bearings are classified into N, NU, NJ, NUP types.
Type N single row cylindrical roller bearing has two integral flanges on inner ring and a flangeless outer ring. This type of bearings permits axial displacement in double directions of the housing relative to the shaft.
Type NU single row cylindrical roller bearing has two integral flanges on outer ring and a flangeless inner ring. This type of bearings permits axial displacement in double directions of the housing relative to the shaft.
Type NJ single row cylindrical roller bearing has two integral flanges one on the outer ring, and one on the inner ring. This type of bearing can carry a certain amount of axial load in a single direction.
Type NUP single row cylindrical roller bearing has two integral flanges on outer ring, one flange and separable loose flange on inner ring. This type of bearing can carry a certain number of axial loads in double directions.
