Angular Contact Ball Bearing 509098A
Posting date : Sep 27, 2017
Membership
Free Member Scince Sep 23, 2017
FOB Price
$349.000/Piece
Min. Order Quantity
10 Pieces
Supply Abillity
100000
Port
Dalian
Payment Terms
T/T
Package
Wooden Carton
Keyword :
Category
Contact
Simon Yin
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CJB
Model Number
509098A
HS-CODE
8482-10
Package & Delivery Lead Time
Package
Wooden Carton
Delivery Lead Time
30 Days
Detailed Description

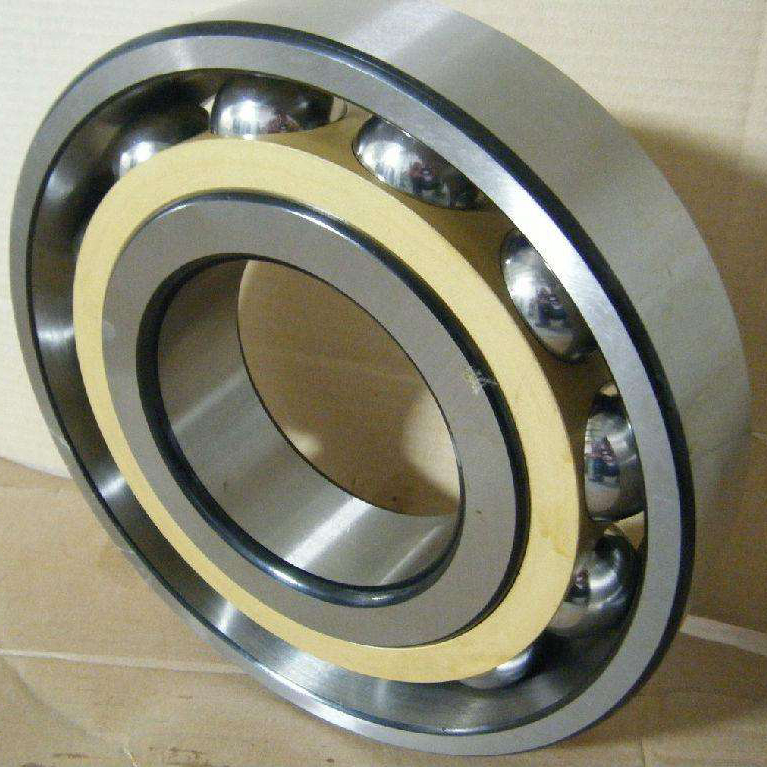

Angular Contact Ball BearingPart No.:509098A
Inner ring:175.000(mm)Outer ring: 235.000(mm)Width of outer ring:27.000(mm)Width of inner ring: 30.000(mm)Chamfer: 1.8Gross Weight: 3.4kgMachined Brass Cage
Angular contact ball bearings are also called angular contact radial thrust ball bearings. Angular ball bearings are particularly suitable for carrying axial load in one direction together with radial load, or accommodate axial loads in one direction only. Because of their design, when axial load is applied, an axial force component is produced; two opposed bearings or a combination of more than two must be used. The axial load carrying capacity of angular contact ball bearings changes along with contact angle. The larger the contact angle, the better the axial load carrying capacity is. Angular contact ball bearings are mainly used in machine spindle, gearbox, reducer and supercharger etc.
