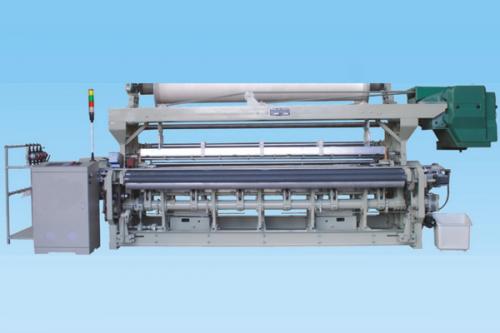

GA738-I Towel Loom
0 likes
China [CN] GA737 rapier towel loom,industrial weaving loom has been released to the market for a long time a received good feedback from customers. This loom machine is known for features like stable function, cost performance, easy maintenance, long endurance and excellent fabric quality. The success of GA737 towel loom has lifted us to the leading position among all the weaving machine suppliers.
Adoption of cam type terry pilling device to increase the softness of terry; the adjustment of terry height is very convenient.
The adoption of strengthened beat-up structure has increase the beating power, suitable for thick heavy terry fabrics.
Thicker weft beating shaft assures enough beating rigidity, making it possible to weave wide width terry towels above 280cm.
The optimized six-linkage weft insertion structure allows a softer and more rational weft insertion curve.
The two electromagnets controlled by process program on electronic system are able to weave both high and low terry.
The reed seat and other main parts made from aluminum alloy ensure a fast and stable performance of the loom.
|
Width |
200cm(78”), 230cm(90”), 260cm(102”), 280cm(110”) |
|
Operation speed |
200cm 240rpm |
|
Yarn count |
cotton 7Ne~60Ne, wool 12Nm~100Nm, chemical fiber 100D~650D |
|
Take up |
roller diameter φ400mm |
|
Letoff |
Upper: positive electric let-off withbeam diameter φ600mm; ground:intermittent mechanical let-off, beam diameterφ600mm |
|
Shedding |
inhead typespring reversing mechanical dobby 24 shafts |
|
Color selector |
6~8 colors |
|
Terry pilling |
Cam type movable reed terry pilling |
|
Terry height |
2~12 times stepless adjustment |
|
Weft stop |
Piezoelectric control |
|
Warp stop |
2 row electric warp stop |
|
Maindrive |
1.8KW~2.2KW |
|
Electronic control |
PLC |
|
Weight |
1900KG~2300KG |
|
Overall size |
4706*1936*2220(230CM/90”) |
