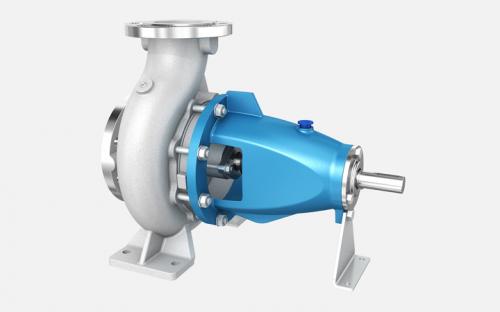

APA Type Chemical Process Water Pump

Description of Industrial Process Pump:

APA series single stage end suction pumps are designed according to ISO5199 and ISO2858 standard, mainly be applied for industrial process water or liquid with fewer solids, hot water, ethyl alcohol, sugar refinery and other industrial process water and sea water. There are three different impeller type can be chosen according to different request: closed, semi-open and open impellers.

Design Feature of Electric Chemical Pump:

Similar appearance with GE series end suction pump but added strengthen tendon on the casing to ensure that suitable for multi-request for chemical process request.Design strictly according to ISO5199 and ISO2858 design, every part can be interchangeability with other same standard brands.Back pull-out design and contact the pump and motor through coupling for easy installing and dismantling.Five size type of shaft of bearing house for the whole series to ensure the less stock and less time of lead timeShaft seal: Gland packing seal, single/double/back to back non-balanced mechanical seal, single/double/back to back balanced mechanical sealWAX casting for casing and impeller to make sure high efficiency and wonderful surface.Flange standard can be made to DIN, ANSI, ISO and another special standard

Operation Data of Chemical Water Pump:

	50Hz	60Hz
Discharge Diameter	25 to300mm	1to12 in
Capacity	Max1,000m³/h	Max 4399 USgpm
Head	<=132.5m	<=435ft
Speed	1450rpm~2900rpm	1750rpm~3600rpm
WorkingPressures	10BAR, 16BAR,20BAR	145psi, 232psi, 290psi
Temperatures	<=105° C, with special kit can be up to 180’C	<=221 ° F,with special kit can be up to 356’C

Chemical Water Pump Application:

Mainly be used in industrial department of oil, chemical industry, synthetic fiber, power station, metallurgy, food, ethyl alcohol, sugar refinery, machining and pharmacy and another industrial chemical process.

Electric Chemical Transfer Pump Material Available:

Pump Part	MaterialConfiguration
	Cast Iron	Ductile Iron	Carbon Steel	SS 304	SS 316L	Duplex	Super Duplex		Bronze
Casing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex		Bronze
impeller	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex		Bronze
Shaft	SS 420				SS304	Duplex		Super Duplex
Seal housing	Cast Iron	Ductile Iron	Carbon Steel	SS304	SS316	Duplex	Super Duplex		Bronze
