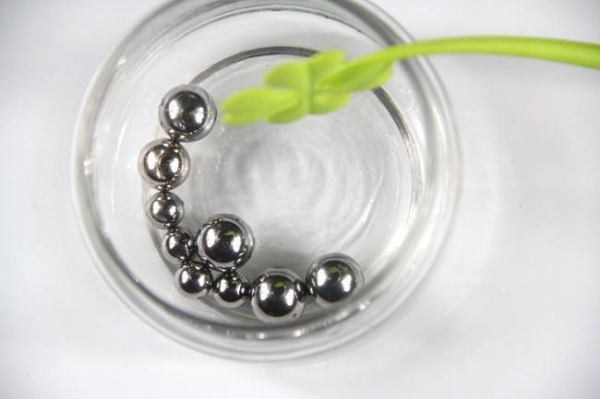

AISI316/316L Stainless steel Balls

Posting date : Jun 14, 2018

Click enlarge Image

Membership

Free Member Scince Sep 14, 2017

FOB Price

1.09-6.49

Min. Order Quantity

1KG

Supply Abillity

Port

qingdao，shanghai,ningbo

Payment Terms

T/T

Package

box，CTN/CTNR

Keyword :

steel balls

Category

MACHINERY & ELECTRICAL | Nuclear re | Ball or ro

Contact

Finna Wang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

xinyuan

Model Number

+8615650516429

HS-CODE

8482-

Package & Delivery Lead Time

Package

box，CTN/CTNR

Delivery Lead Time

Detailed Description

Austenitic Stainless steel Balls with higher corrosion resistance than AISI 304 Balls. They show good toughness. AISI 316L has a lower carbon content（maximum 0.030pct）.Balls are provided in the passivated condition.

Applications：special bearings ，pumps and valves ，aerosol and dispenser sprayers. Utilised in the foodstuff，paper，chemical，rubber， military， textile industry .Applications in photographic devices，medical instruments，quick couplings, recirculating balls,ink cartridges,jewels .

Taian Xinyuan Precision Steel Ball Manufacturing Co.,Ltd

316 stainless steel balls

Profile:

316 stainless steel balls have exceptional corrosion resistance, thanks to their higher nickel and molybdenum content. Developed to resist attack by sulphuric, phosphoric and acetic acid compounds; these stainless steel balls are used extensively in applications involving photographic chemicals, inks, rayon, rubber, textile bleaches, dye stuffs and high temperature equipment. 316 stainless steel balls are also FDA approved for medical grade material.

Characteristics

These metal balls made from type 316 have excellent environmental resistance and low magnetic properties, which make this material a great choice for many types of applications. This material is passivated to reduce reactivity.

Physical constants

Density - 0.29 lbs./cu. in.

Typical hardness

Annealed - Rockwell B 75-95. Not annealed - Rockwell C 25-39.

Ball sizes

Available in sizes from .7mm to 63.5mm in grades 50 through 1000.

XYB is a multinational supplier of 316 stainless steel balls for applications including valves and bearings used in medical, health and beauty aid (HBA), food and beverage parts and assemblies.

XYB designs engineers are among the most knowledgeable in the industry, and our ability to manufacture on both sides of the globe gives XYB customers a substantial advantage in cost and flexibility. We produce more than one billion balls per year for high volume OEM applications and can provide fast turn-around to meet stringent delivery requirements.

Carbon 0.08% max.

Chromium 16% – 18%

Nickel 10% – 14%

Molybdenum 2% – 3%

Manganese 2.0%

Phosphorus 0.045%

Sulfur 0.034%

Silicon 1.0% max

All standard steel balls are always in stock and ready for immediate off-the-shelf delivery. If your application calls for customized balls, send us your specifications and we’ll glady meet them.
