Vigor SST20 for solar tracking system
Posting date : Mar 16, 2018
Membership
Free Member Scince Oct 27, 2008
FOB Price
150usd
Min. Order Quantity
1
Supply Abillity
10000/month
Port
Shanghai
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
Stephan Zhan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Vigor
Model Number
SST20
HS-CODE
9031-80
Package & Delivery Lead Time
Package
carton
Delivery Lead Time
based on the quantity
Specifications

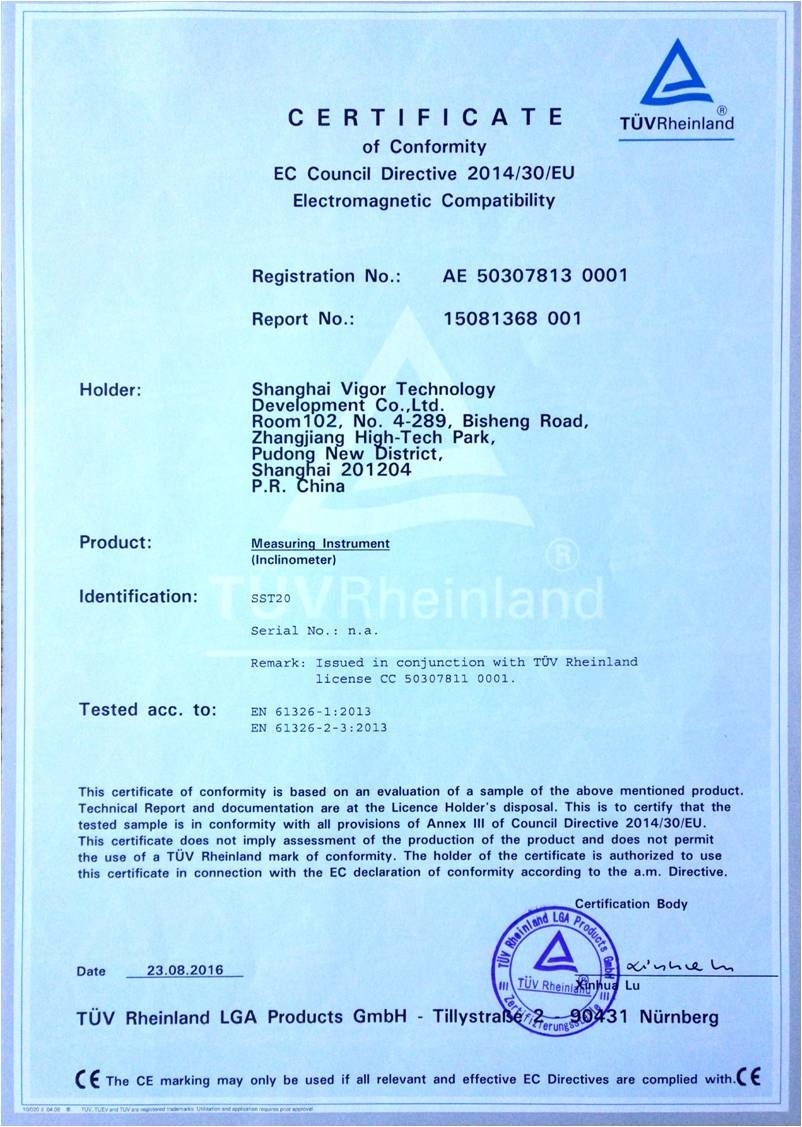

Type of Certification
TUV
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Detailed Description
Features
Low cost, high performance,
suitable for batch application
50Hz refresh rate, 10Hz response frequency
±0.2% cross-axis error
Available to horizontal, vertical, headstand, etcinstallation methods
IP67protection
9~36VDC power supply
Sensing elements survive to 1500g shock while

Applications
Vessel, Engineering machinery, Solar/wind energy, automobile/truck/vehicle, Communication/electric Towermonitoring, High-voltage pylon monitoring, Antenna, construction engineering, Landslide, etc

Descriptions
SST20 inclinometer based on Vigor’s advanced tilt measurement technology, to meet with low cost, highreliability and volume application, performs high performance-cost ratio.
SST20 employed most universal & mass-produced components, casting aluminum alloy house, universal highreliability M12-5pin industrial connector; IP67 protection, auto-test/calibration equipment which not onlyensure delivery speed, also keep the consistency of goods

Thanks for Vigor engineers, they adopt advanced technologies as:
- CAE/EDA simulation;
- Modal test for both housing and PCB to eliminate resonance due to vibration;
- Comprehensive performance & function test for component & firmware;
- Calibration technology based on SST300 high accuracy inclinometer;
- Refer MIL/ EN/ ISO/IEC standards to enhance SST20 durability & reliability.

MTBF more than 10 years per time and has better EMC ability.

SST20 output RS232/RS485/CAN/CANOpen/Switch and Voltage/Current signals. Better power managementto meet with automotive /truck/vehicle application without regulated power.

OEM service is available with calibrated PCBA or MIL qualified.
