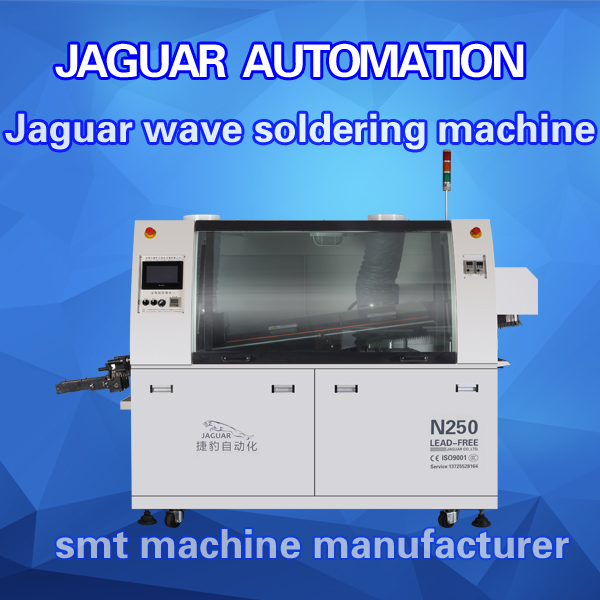

Touch tone lead-free dual wave soldering machine
0 likes
China [CN] |
Model No.
|
JAGUAR N250
|
|
Number of heating zones
|
2
|
|
Length of heating zones
|
600mm
|
|
Body size
|
1800(L)*1200(W)*1600(H)
|
|
Outside dimension
|
2600(L)*1200(W)*1600(H)
|
|
Weight
|
700KG
|
|
Total/running power
|
11KW/4-6KW
|
|
Air supply
|
0.5MPa
|
|
Preheating method
|
Hot air
|
|
Preheating power
|
220V 5KW
|
|
Control method
|
Press key +PLC （Option: touch screen, PC）
|
|
Range of temp. control
|
Room temperature---300℃
|
|
Preheating time
|
About 10-15mins for setting 150℃
|
|
Solder type
|
Lead-free / Sn-Pb
|
|
Solder pot capacity
|
220KG
|
|
Solder pot temperature
|
300℃
|
|
Solder power
|
380V 6KW
|
|
Solder temp. control method
|
PID&SSR
|
|
Wave crest drive power
|
500W 220V
|
|
Warm-up time of solder
|
About 120mins for setting 250℃
|
|
PCB width
|
50-250mm
|
|
Convey speed
|
0-1800mm/min
|
|
Convey direction
|
L→R (R→L optional)
|
|
Convey angle
|
4—7 º
|
|
Flux pressure
|
3-5 bar
|
|
Flux capacity
|
3.2L
|
