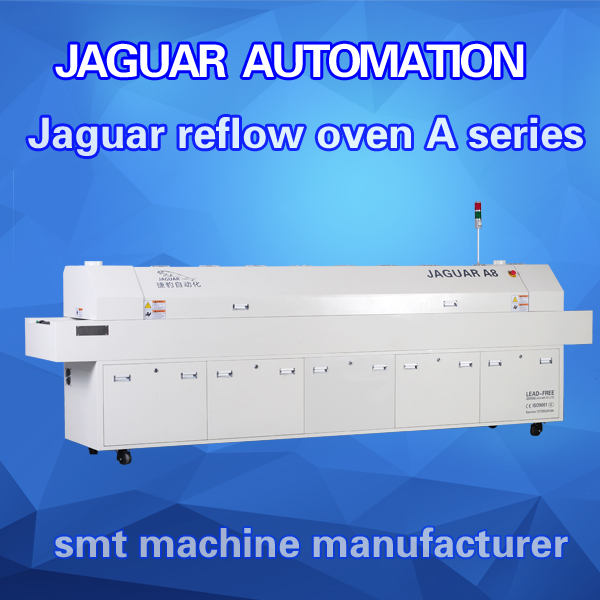

Eight zones Economical JAGUAR A8 Reflow Soldering Machine
0 likes
China [CN] |
Model
|
JAGUAR A8
|
|
|
Heating System
|
Number of heating zones
|
UP 8/BOTTOM 8
|
|
Length of heating zones
|
2800MM
|
|
|
Heating mode
|
Up:hot air; bottom: IR
|
|
|
Cooling Mode
|
Force air
|
|
|
Conveyor System
|
Max. Width of PCB
|
350mm
|
|
Mesh belt width
|
400mm
|
|
|
Transmission Direction
|
L→R(or R→L)
|
|
|
Transmission Net Height
|
880±20mm
|
|
|
Transmission type
|
Mesh
|
|
|
Conveyor speed
|
0-1000mm/min
|
|
|
Fixed rail side
|
Front rail fixed(option: rear rail fixed)
|
|
|
Control system
|
Power supply
|
5 line 3 phase 380V 50/60Hz
|
|
Total power
|
38kw
|
|
|
Starting power
|
34kw
|
|
|
Normal power consumption
|
4KW
|
|
|
Warming time
|
About 20 mins
|
|
|
Temp. setting range
|
Room temperature-300℃
|
|
|
Temp. control method
|
PID close loop control & SSR driving
|
|
|
Temp. control precision
|
±1℃
|
|
|
Temp. deviation on PCB
|
±2℃
|
|
|
Data storage
|
Process Data and status storage(80GB)(machine with PC)
|
|
|
Nozzle plate
|
Aluminum Alloy Plate
|
|
|
Abnormal Alarm
|
Abnormal temp. (extra-high/extra-low temp.)
|
|
|
Board dropped alarm
|
Tower light:Yellow-warming, Green-normal, Red-abnormal
|
|
|
General
|
Dimension(L*W*H)
|
4200×700×1320mm
|
|
Weight
|
800KG
|
|
|
Color
|
Computer gray
|
|
