Rosemount™ 2090F Hygienic Pressure Transmitter
Posting date : Aug 29, 2017
Membership
Free Member Scince Aug 24, 2017
FOB Price
negotiated price
Min. Order Quantity
1
Supply Abillity
unlimited
Port
Shanghai
Payment Terms
T/T 30% in advance and balance 70% before delivery
Package
Carton or Customized by customers’ requirements
Keyword :
Category
Contact
Alisa Peng
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Rosemount
Model Number
2090F
HS-CODE
8406-81
Package & Delivery Lead Time
Package
Carton or Customized by customers’ requirements
Delivery Lead Time
4-6 weeks
Detailed Description
Dekemeng Process Control (Wuhan) Co.,Ltd.
Alisa Peng  Sales Representative
Tel: +86 027-51013708
Mob: +86 13307111202
FAX:+86 027-88068180
Email:whdkmsale@yahoo.com,whdkmsale@163.com
Http: //www.whdkm.com

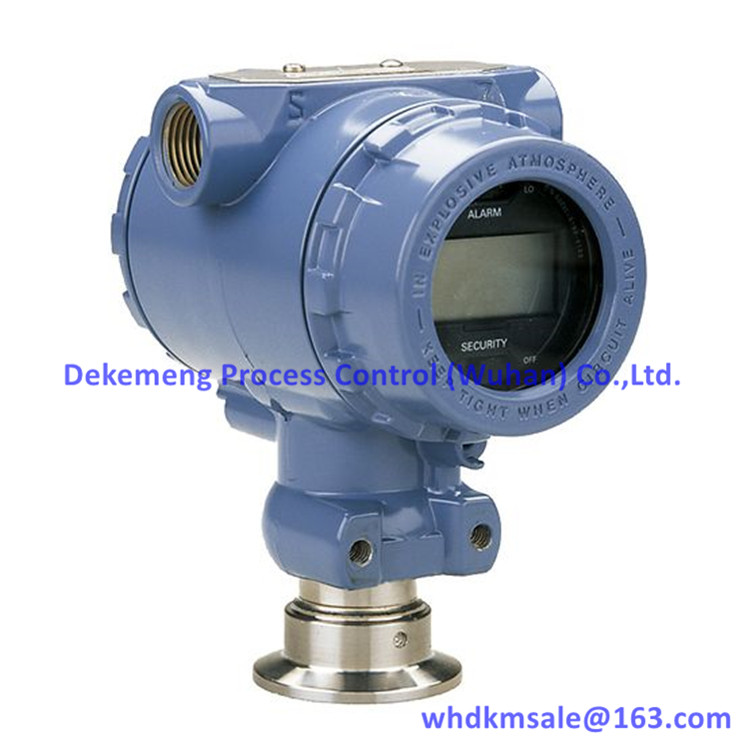

Rosemount™ 2090F Hygienic Pressure Transmitter

Introduction
Designed for hygienic applications, the Rosemount 2090F Hygienic Pressure Transmitter is specifically engineered for the pharmaceutical and food and beverage industries. Built with industry standard process connections, this device connects to sanitary fittings without special mounting hardware. In addition, this hygienic pressure transmitter conforms to 3-A Sanitary Standards, allowing you to meet tough process requirements.

Specifications
Accuracy
     0.20%

Power Supply
10.5-42.4 V

Warranty
Up to 5-year limited warranty

Rangedown
Up to 20:1

Communication Protocol
4-20 mA HART

Measurement Range
Up to 300 psig (20,7 bar) Gage, Up to 300 psia (20,7 bar) Absolute

Process Wetted Material
316L SST

Diagnostics
Basic Diagnostics

Certifications/Approvals
3-A Sanitary Standards, hazardous location, see full specs for complete list of certifications

Features
Tri Clamp process connection designed for standard sanitary fittings
Conforms to 3-A Sanitary Standards for hygienic application compliance
Utilizes single-filled sensor system for reliability and accuracy
Features CIP/SIP service for process temperatures of up to 140 ℃
Fully configurable LCD displays process variable, percent of range and diagnostic messages

Normal Models
2090FA1S2DE1B4M5
2090FA2S2DE1B4M5
2090FA3S2DE1B4M5
2090FG1S2DE1B4M5
2090FG2S2DE1B4M5
2090FG3S2DE1B4M5
2090FA1S2DF1B4M5
2090FA2S2DF1B4M5
2090FA3S2DF1B4M5
2090FG1S2DF1B4M5
2090FG2S2DF1B4M5
2090FG3S2DF1B4M5
2090FA1S2DE2B4M5
2090FA2S2DE2B4M5
2090FA3S2DE2B4M5
2090FG1S2DE2B4M5
2090FG2S2DE2B4M5
2090FG3S2DE2B4M5
2090FA1S2DF2B4M5
2090FA2S2DF2B4M5
2090FA3S2DF2B4M5
2090FG1S2DF2B4M5
2090FG2S2DF2B4M5
2090FG3S2DF2B4M5
