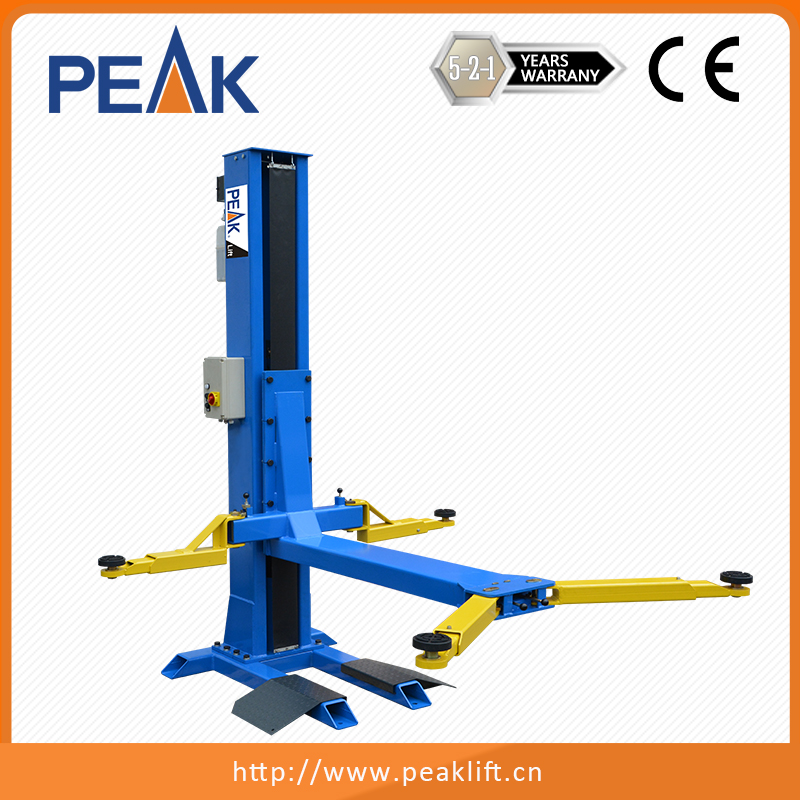

2.5T Capactity Single Post Parking Lift (SL-2500)
Feature
•Capacity:2500kg
•24V control system make sure the safety operation
•Fabric chain cover protects the cylinder and makes lift in good appearance.
•High strength gear and rack, more stable and safe.
•Lifting arm with screw-up holding pads make it easy and quick to adjust the height, and 3"extension adaptors.
•Two levels of security system, with chain protection cover to prevent to take off it.
•Fixed one column design , adjustable arms
•Mechanical Self-Lock, manual lock release safety device makes more convenient operation.
•Self-lubricating UHMW Polyethylene sliders and bronze bush, maintenance free, trouble free.
•Height limited switch protects the cylinder in long service life.
•Long warranty:5 Years warranty on lift structure(including Columns, Carriage, Lifting Arms, Top Beam, Floor Cover, Platform, Cross Beam, Car Drive-in Ramp, Scissor, Baseframe etc.); 2 Years warranty on the hydraulic parts (including cylinders, oil seal, oil hose, fitting etc.); 1 Year warranty on the spare parts, electrical components, power unit (not including consumption parts such as rubber pad).
| Model |
SL-2500 |
| Style |
Single Post Lift |
| Lifting Capacity |
2.5T (5,500lbs) |
| Lifting Time |
28 Seconds |
| Lifting Height |
1825-1960mm (71 4/5" - 77 1/6") |
| Minimum Lifting Height |
106mm(4 1/6") |
| Overall Height |
2766mm(108 7/8") |
| Overall Width |
2032mm(80") |
| Gross Weight |
713kg(1,572lbs) |
| Motor |
2.0/3.0HP |
| Packing Dimension |
105×130×12cm275×50.9×37.5cm108×77.5×179cm |
