12V 5A Power Supplies, 12V 5A AC DC Power Adapter UL, FCC, CE Certified

본문 바로가기


Home > Product > 12V 5A Power Supplies, 12V 5A AC DC Power Adapter UL, FCC, CE Certified
Product
12V 5A Power Supplies, 12V 5A AC DC Power Adapter UL, FCC, CE Certifie...
Posting date : Jun 23, 2017
Membership
Free Member Scince Jun 22, 2017
FOB Price
USD$5.7
Min. Order Quantity
500
Supply Abillity
over 10K per month
Port
Xiamen
Payment Terms
T/T
Package
PE bag + small white box
Keyword :
Category
Contact
Shirely
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
XH
Model Number
XH-DA001
HS-CODE
8501-20
Package & Delivery Lead Time
Package
PE bag + small white box
Specifications

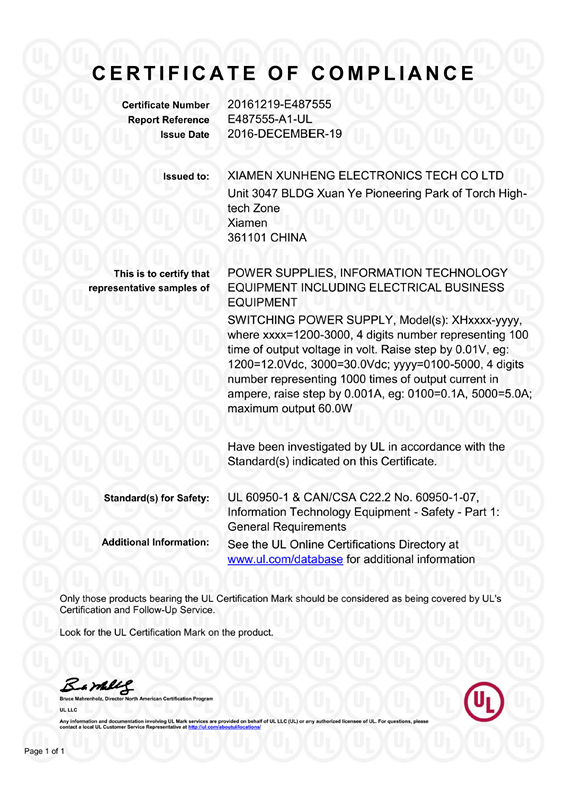

Type of Certification
certificate of compliance
Reference no.
E487555-A1-UL
Name.
UL
Issued By
UL LLC
Start Date (validity period)
2016-12-19
End Date (validity period)
0000-00-00

Detailed Description
Applications: Fixed frequency control circuit, apply to communication products, digital products, energy conservation and environmental protection products, massage equipment, fitness equipment, medical equipment and other household electrical appliancesProduct characteristics:
  • Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE
  • Low standby power consumption, meets the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
  • Customization: EU standard, American standard, British standard, Australia standard, Korean standards, Chinese standard
 Electrical characteristics:
  • Input voltage: 100-240V AC (90-264V AC)
  • Input current: 1.5A max
  • Frequency: 50/60Hz (47-63Hz)
  • Output voltage: 4.6-36V
  • Output current: 0.1-5.0A
  • No-load power consumption: 0.3W max
  • Efficiency: 87% min
  • Ripple and noises: 50-200mV
  • Line regulation: ±1%
  • Load regulation: ±5%
Output protections:
  • Short circuit protection
  • Over-voltage protection
  • Over-current protection
Environmental characteristics:
  • Hi-pot test: 3750V AC 60s 5mA max
  • Insulation resistance: 100M Ω min
  • Leakage current: 0.25MA max
  • Operating temperature: 0 to 40°C
  • Storage humidity: 5 to 95%RH
  • Burn-in test: rate load, 40 ±5°C, 4 hours
  • EMC standards: EN55022 class B/FCC part 15 class B EN55024/A1:2001/EN61000
