5v 0.5a 500ma 1.5 a AC DC wall mounted USB power adapter

본문 바로가기


Home > Product > 5v 0.5a 500ma 1.5 a AC DC wall mounted USB power adapter
Product
5v 0.5a 500ma 1.5 a AC DC wall mounted USB power adapter
Posting date : Jun 22, 2017
Membership
Free Member Scince Jun 22, 2017
FOB Price
USD$1.3
Min. Order Quantity
500
Supply Abillity
over 10K per month
Port
Xiamen
Payment Terms
T/T
Package
PE bag + small white box
Keyword :
Category
Contact
Shirely
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
XH
Model Number
XH-WA001
HS-CODE
8501-20
Package & Delivery Lead Time
Package
PE bag + small white box

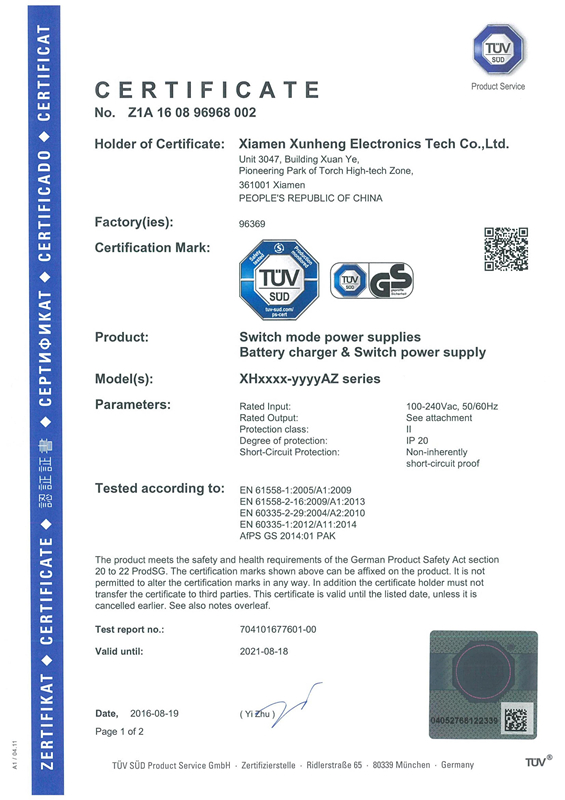

Specifications
Type of Certification
Attestati0on of Conformity
Reference no.
No.N8A160896968001
Name.
GS
Issued By
TÜV SÜD Product Service GmbH
Start Date (validity period)
2016-08-19
End Date (validity period)
2021-08-18
Scope
Switch mode power supplies, XHxxxx-yyyyAZ series

Detailed Description
Applications: Fixed frequency control circuit, apply to mobile phones, electric tools, laptop computers and iPad, digital cameras, router, POS machine, solar lights/solar lampsProduct characteristics:
  • Size: 55.2*25.2*43.3mm
  • Safety approval of CCC, CB, ETL, CE, UL, GS, BS, KC, SAA, PSE, BIS
  • Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)
  • Accept customization of specification, USB output type or power cord output type
  • Customization: EU standard, American standard, British standard, Australia standard, Korean Standards, Chinese standard
Electrical characteristics:
  • Input voltage: 100-240V/AC (90-264V/AC)
  • Input current: 0.2A max
  • Frequency: 50/60Hz (47-63Hz)
  • Output voltage: 3.0-30V
  • Output current: 0.1-1.5A
  • No-load power consumption: 0.1W max
  • Efficiency: 70% min
  • Ripple and noises: 50-180mV
  • Line regulation: ±1%
  • Load regulation: ± 5%
  • Common specification: 5V DC/1.0A
Output protections:
  • Short circuit protection
  • Over voltage protection
  • Over current protection
Environmental characteristics:
  • Hi-pot test: 3750V/AC 60s 5mA max
  • Insulation resistance: 100M Ω min
  • Leakage current: 0.25mA max
  • Operating temperature: 0-40℃
  • Storage humidity: 5-95% RH
  • Burn-in test: rate load, 40±5℃, 4 hours
  • EMC standards: EN55022 class B/FCC part 15 class B
  • EN55024/A1:2001/EN61000
