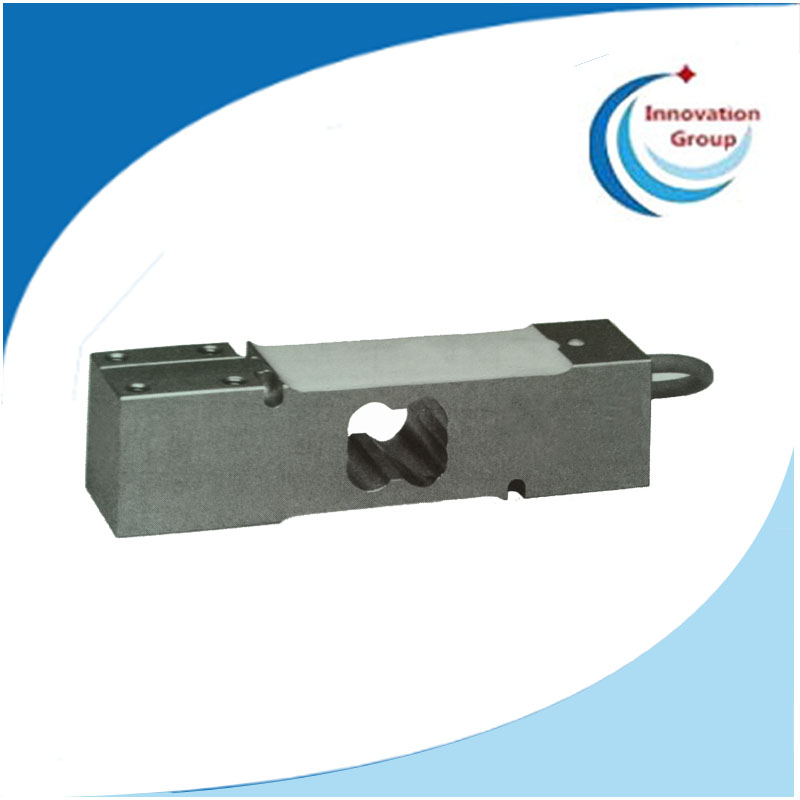

IP69 Single Point Load Cell IN-PW10A
0 likes
China [CN] Single Point Load Cell - INPW-10A

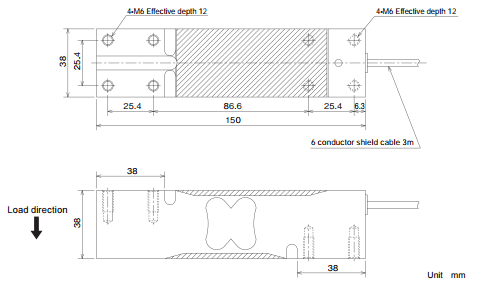

Single Point Load Cell Dimensions:
Single Point Load Cell Technical Parameters:
|
Model |
IN-PW10A-50KG, IN-PW10A-100KG, IN-PW10A-150KG,IN-PW10A-200KG, IN-PW10A-250KG,IN-PW10A-300KG, |
|
| Rated Capacity | 50,100,150,200,250,300 | KG |
| Rated Output | 2.0±0.2 | mV/V |
| Safe Overload | 150 | %R.C. |
| Maximum safe overload | 300 | %R.C. |
| Maximum safe side overload | 300 | %R.C. |
| Zero balance | ±6 | %R.O. |
| Non-linearity | 0.0166(typ) | %R.O. |
| Hysteresis | 0.0166(typ) | %R.O. |
| Compensated temperature range | -10 to +40 | ℃ |
| Safe temperature range | -10 to +50 | ℃ |
| Temperature effect on zero |
0.0140(50/100/200kg), 0.0093(150/300kg), 0.0112(250kg) |
%R.O./10K |
| Temperature effect on span | 0.0175(+20 to +40℃), 0.00117(-10 to +20℃) | %R.O./10K |
| Input resistance | 300 to 500 | Ω |
| Output resistance | 330 to 430 | Ω |
| Recommended excitation voltage | 1 to 12 | V |
| Insulation resistance | 2000 or more | MΩ |
| Degrees of protection | IN67 | |
| Cable | 6 conductor shield cable 3m | |
| Load cell material | Aluminum |
Click enlarge Image
