Mimaki JFX500-2131 Printhead GEN5 Assy - M013497

본문 바로가기


Home > Product > Mimaki JFX500-2131 Printhead GEN5 Assy - M013497
Product
Mimaki JFX500-2131 Printhead GEN5 Assy - M013497
Posting date : May 24, 2017
Membership
Free Member Scince May 24, 2017
FOB Price
$1,755.38
Min. Order Quantity
1 Piece
Supply Abillity
100
Port
Jakarta Airport (Soekarno-Hatta)
Payment Terms
Paypal, T/T
Package
Experts
Keyword :
Category
Contact
Herman Dalatas
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
Indonesia [ID]
Brand Name
Mimaki
HS-CODE
8443-
Package & Delivery Lead Time
Package
Experts
Delivery Lead Time
7 Days
Detailed Description

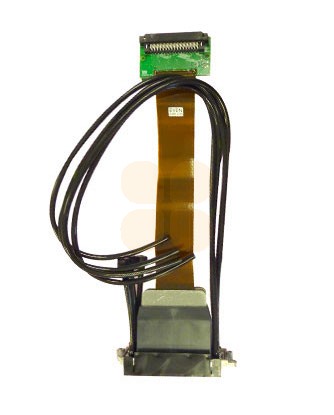

Mimaki JFX500-2131 Printhead GEN5 Assy - M013497



This printhead GEN5 (MH5420/5440) is suitable for Mimaki JFX500-2131 & UJV500-160 printers. It has two and four colour support, 8 levels of grayscale and up to 600 npi nozzle density. This is the original Mimaki part (number M013497 / M015068).

Product Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo yype: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Life: 100 billion actuations per nozzle



Manufacturer:

Mimaki

 Printer compatibility:

Mimaki JFX500-2131 / UJV500-160

 DP part number :

PPHMI13301
