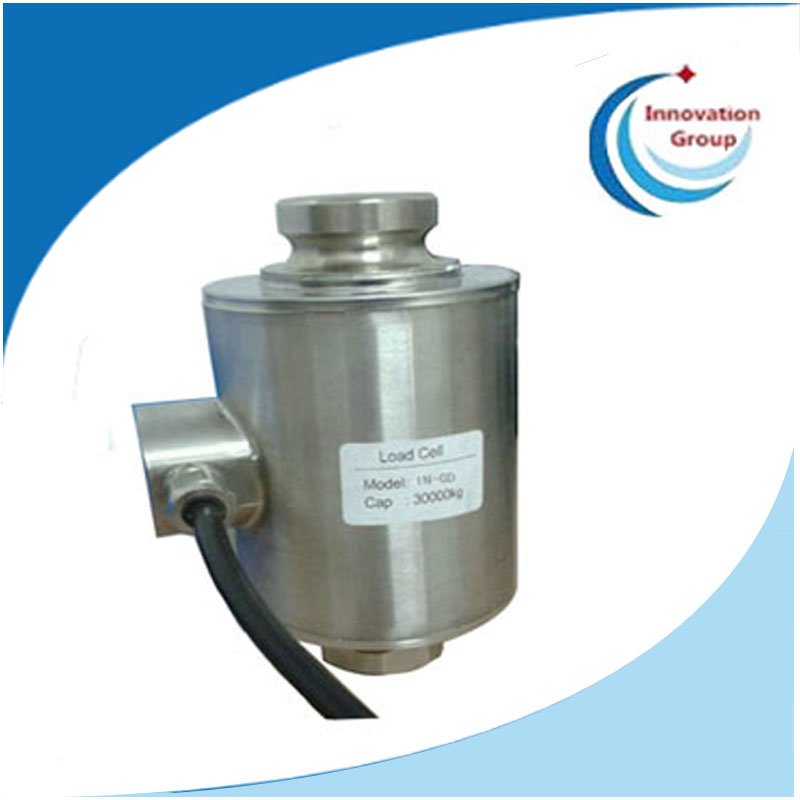

Replace 30t Canister Mettler Toledo Load Cell for Truck Scale-IN-GD
0 likes
China [CN] Replace 30t Canister Mettler Toledo Load Cell for Truck Scale-IN-GD
Self-restoring rocker pin load cell
Suitable for Truck scale, railway scale, axle wheel scale, floor scale
Load Cell Special Features:
Self-restoring function
Nominalloads:10t-50t Simple to install
Laser welded ,IP68
Optimized for parallel connection by comer pre-adjustment
Meets EMC/ESD requirements According to EN 45 501
|
Item
|
Unit
|
Parameter
|
||||
|
Accuracy Class to OIML R60
|
|
C2
|
C3
|
|||
|
Maximum Capacity (Emax)
|
t
|
10, 20, 30, 40, 50
|
||||
|
Minimum LC Verification Interval (Vmin)
|
% of Emax
|
0.0200
|
0.0100
|
|||
|
Sensitivity(Cn) / Zero Balance
|
mV/V
|
2.0±0.002/0±0.02
|
||||
|
Temperature Effect on Zero Balance (TKo)
|
% of Cn/10K
|
±0.02
|
±0.0170
|
|||
|
Temperature Effect on sensitivity (TKc)
|
% of Cn/10K
|
±0.02
|
±0.0170
|
|||
|
Hysteresis Error (dhy)
|
% of Cn
|
±0.0270
|
±0.0180
|
|||
|
Non-linearity (din)
|
% of Cn
|
±0.0250
|
±0.0167
|
|||
|
Creep (dcr) Over 30 min.
|
% of Cn
|
±0.030
|
±0.0167
|
|||
|
Input (RLC) & Output Resistance (Ro)
|
Ω
|
1160±10&1000±3
|
||||
|
Nominal Range of Excitation Voltage (Bu)
|
V
|
5-12
|
||||
|
Insulation Resistance (Ris) at 50 Vdc
|
MΩ
|
≥5000
|
||||
|
Service Temperature Range (Btu)
|
℃
|
-30…+70
|
||||
|
Safe Load Limit (EL) & Breaking Load (Ed)
|
% of Emax
|
150 & 200
|
||||
|
Protection Class According to EN 60 529 (IEC 529)
|
|
IP68
|
||||
|
Material: measuring element + housing
|
|
Stainless or Alloy Steel + Stainless Steel
|
||||
|
Maximum Capacity (Emax)
|
t
|
10
|
20
|
30
|
40
|
50
|
|
Min. scale Verification (emin) according to En45 501
[...#=max. Number of Load Cells]
|
Kg
|
5
[6#]
|
5
[6#]
10
[8#]
|
10
[8#]
|
10
[6#]
20
[8#]
|
10
[4#]
20
[10#]
|
|
Recommended Maximum Weighing Capacity of Scale
|
T
|
30
|
50
80
|
100
|
100
150
|
100
200
|
|
Deflection at Emax (snom), approx.
|
Mm
|
0.55
|
0.65
|
0.75
|
0.85
|
0.85
|
|
Weight(G), approx.
|
Kg
|
1.9
|
2.1
|
2.3
|
2.5
|
2.7
|
|
Cable: Diameter: φ6mm Length
|
m
|
12
|
12
|
14
|
16
|
16
|
