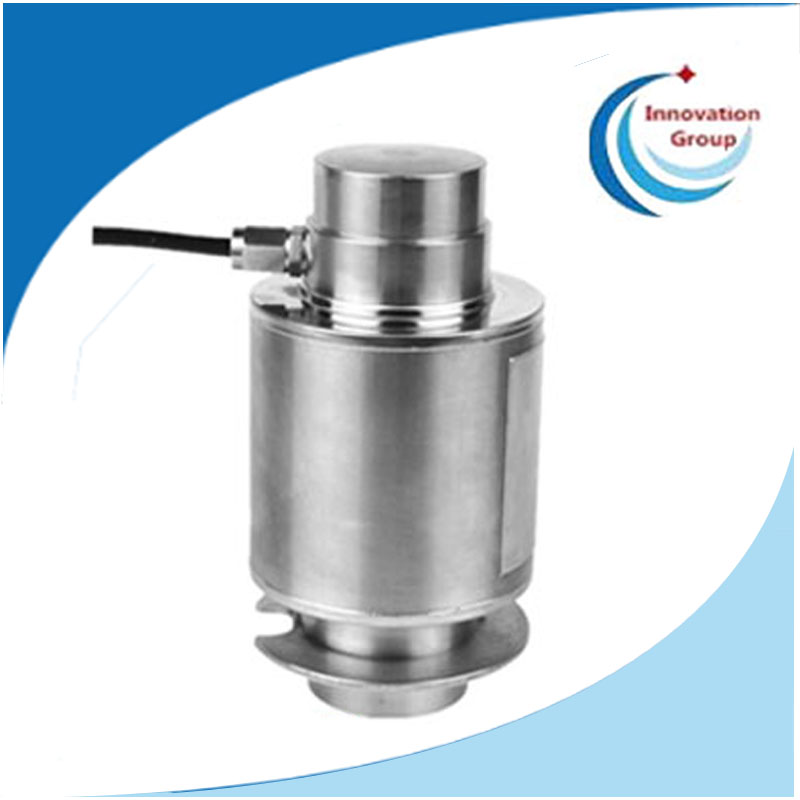

Replace HBM C16 25t 30t 40t Analog Canister Compresion Alloy Steel Load Cell

Product

Replace HBM C16 25t 30t 40t Analog Canister Compresion Alloy Steel Loa...

Posting date : May 20, 2017

Click enlarge Image

Membership

Free Member Scince Dec 26, 2016

FOB Price

FOB SHANGHAI

Min. Order Quantity

1 PC

Supply Abillity

1000 PCS/MONTH

Port

shanghai

Payment Terms

T/T, LC, PayPal

Package

7KG/CARTON

Keyword :

canister load cell

Category

MACHINERY & ELECTRICAL | Nuclear re | Weighing m | Weighing m

Contact

innovation loadcell

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

Innovation

Model Number

IN-C16

HS-CODE

8423-90

Package & Delivery Lead Time

Package

7KG/CARTON

Delivery Lead Time

7-15DAYS

Detailed Description

Column load cell

Suitable for truck scale

Stable quality in the long term.

Interchangeable with HBM LOAD CELL MODEL C16

Advantages:-Self-restoring function-Simple to Install-Laser welded, IP68-Optimized for parallel connection by corner pre-adjustment-Application: Truck scale or other compression weighing devices

Items	UNIT	TECHNICAL DATA
Rated capacity (Emax)	t	10,15,20,25,30,40,,50
Accuracy class		C3
Output(cn)/Zero Balance/	mV/V	2.0 ±0.02 /0±0.02
Minimum LC verification interval (Vmin)	% of Emax	0.01
Creep over 30min	% of Cn	0.02
Temperature effect on zero	% of Cn/10K	0.02
Temperature effect on output	% of Cn/10K	0.02
Hysteresis	% of Cn	0.017
Linearity deviation	% of Cn	0.017
Repeatability	% of Cn	0.017
Service temperature range		-30 to +70
Limit load & Break load	% of EMax.	120 /150
Nominal excitation	V	5~12
Input resistance & Output resistance	Ω	700±20 & 703±20
Insulation resistance	M	>5000
Cable length: diameter :Ø6mm	M	14
Cable type		4 conductors, Braid Shielded, Black PVC Jacket
Color code:		+Exc -Red, +Sig-grn, -Exc-Blk, -Sig- Wht
Construction material:		stainless steel / alloy steel
Protection class to IEC529		Ip68
