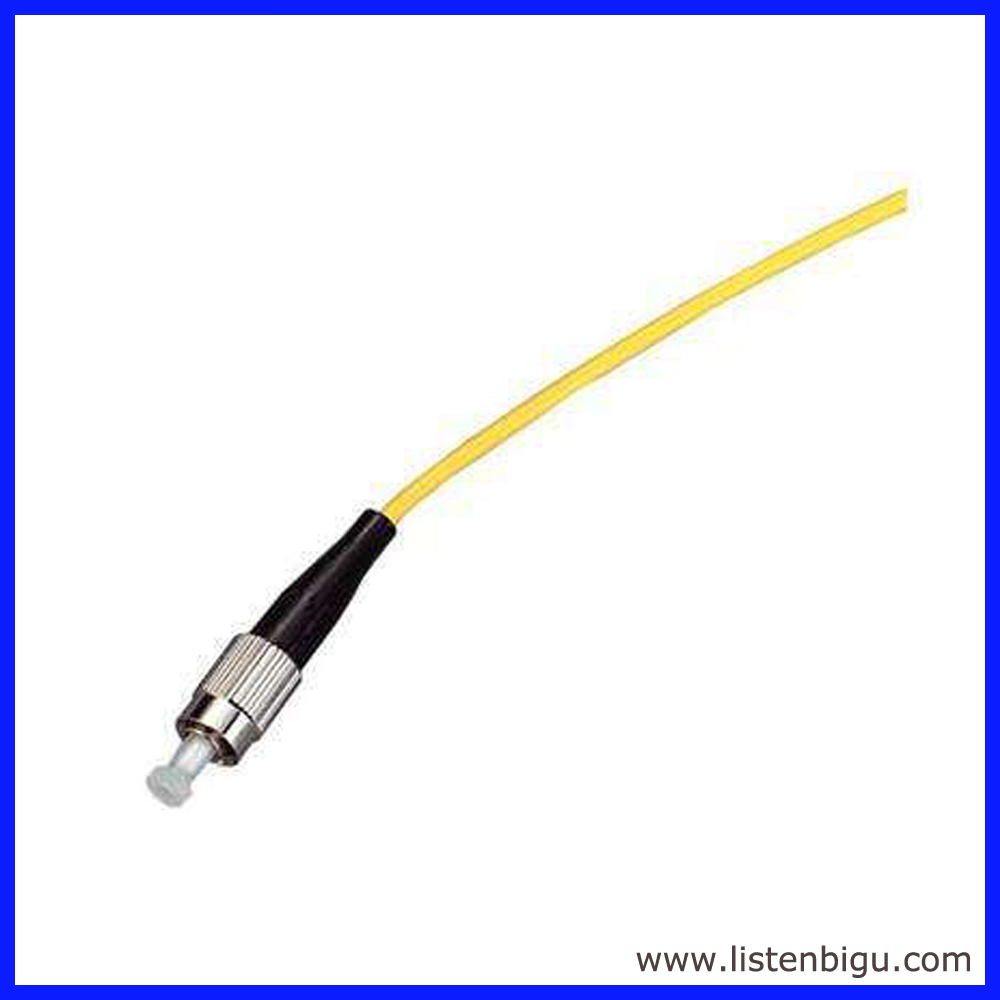

Fiber-optic Patch Cord, FC, Single-mode, Simplex 3.0mm, Good Quality
0 likes
China [CN] Fiber-optic Patch Cord, FC, Single-mode, Simplex 3.0mm, Good Quality
Description:
The fiber patch cords applied in telecommunication, data new dispatch, local area network and vast domain net, fiber patch cords are adjusting connection box small scale, demand but development that high-thickness joins one kinds of new connection box in order to meet client, it compresses the entire electric network plank and that wall plank and the flexibility cabinet needs.
The main product are patch cord.
Types: FC, ST, SC, LC, MT-TJ, MU E2000 and D4 optical fiber patch cord.
Features:
Low-insertion loss and high-return loss
Excellent repeatability and changeability
Simple and duplex available
Quick connection and removal
Excellent stability of temperature
Product form:
Insertion loss: PC≤0.20, UPC≤0.20, APC≤0.20
The largest test insertion loss: PC≤0.30, UPC≤0.30, APC≤0.30
Echo return loss: PC≥45, UPC≥50, APC≥65
Repeatability: 0.2
Working temperature: -40 to 75°C
Storing temperature: PC -40 to 75°C/UPC -40 to 85°C/APC -40 to 75°C
Optical fiber type: SM/MM
Thrust the batch number of timers: 1,000
Adopt criterion: IEC60874
Click enlarge Image
