Steel Pipe Outer Wall Special Shot Blasting Machine
Posting date : Jan 09, 2018
Membership
Free Member Scince Apr 11, 2017
FOB Price
1
Min. Order Quantity
1
Supply Abillity
250,000/tons
Port
Qingdao
Payment Terms
TT, LC
Package
Standard Export Packaging
Keyword :
Category
Contact
Vilip Wang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
KAITAI
HS-CODE
8424-
Package & Delivery Lead Time
Package
Standard Export Packaging
Delivery Lead Time
60 days
Detailed Description

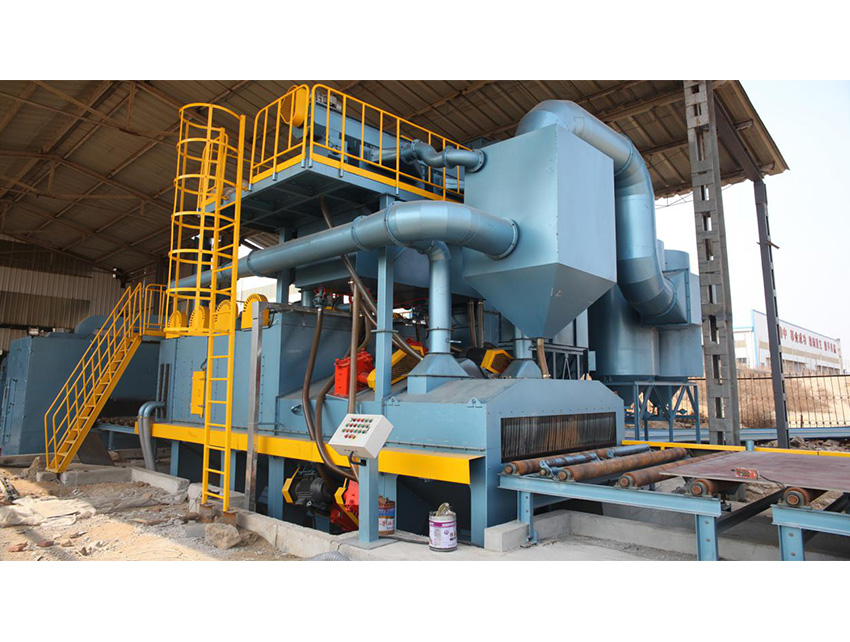

Steel Pipe Outer Wall Special Shot Blasting Machine

Product Features:
QG series steel pipe outer wall shot blasting machine with high efficiency achieves shot blasting for diameter (16~2800mm) steel pipe outer wall cleaning, with a powerful cleaning function to clear the fixture on the steel pipe surface, the steel pipe surface will show metallic character, achieve an effective clean-up purposes.
1. Regarding steel pipe with diameter of 16~600mm, we adopt V type conveyor which have an angle with steel pipe center line, steel pipe can rotation while going forward.
2. Regarding steel pipe with diameter of 159~2800mm, we adopt roller transmission, angle between roller is adjustable, running speed and rotation speed can be adjustable with large diameter; blasting wheel adopts bottom blasting distribution, it will has higher cleaning efficiency and better cleaning effect.
3. Shots material circulation purification system takes overflow induction controllable full multi-stage curtain winnowing splitter and special polyester core elevator conveyor, achieves shot material sorting and recycling.
4. Blasting room adopts multi-layer seal curtain which is suitable for different diameters, shot blasting, dust removal system uses impulse reversal blowing filter cartridge dust collector, dust removal is good, life is long.
Production Application
This series equipment is used for steel pipe anti-corrosion pre-treatment of water,gas,mining ,oil .It also is used for shot blasting of submarine pipe or desert gas pipe.In order to improve surface appearance quality and surface process condition of parts.
