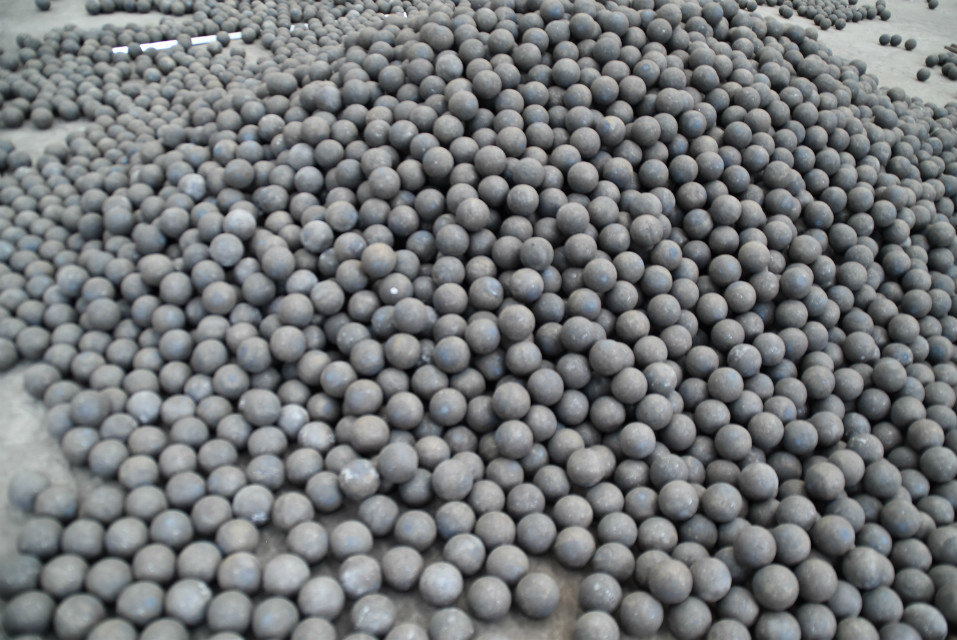

20mm-100mm Forged Grinding Media Steel Balls
0 likes
China [CN] Company Information
1.Professional Grinding balls Manufactory founded in 1998;
2.Advanced production equipment;
3.Exported more than 30 countries;
4.Experienced development personnel,professional designers,salesman and skilled workers
5.Capacity:10000mt/month.
Our Services
1. Free samples for your test before orders;
2. Soonest delivery time ;
3. Cooperate with many famours shipping companies,and sent the goods to your port safe and in time;
4. Any feedback after sales would get our soonest reply.
Chemical composition:
| Material | C | Mn | Si | Cr | S | P |
| 50MN | 0.48-0.56 | 0.70-1.0 | 0.17-0.37 | 0.25 max | 0.035max | 0.035max |
| 60MN | 0.57-0.65 | 0.70-1.0 | 0.17-0.37 | 0.25 max | 0.035max | 0.035max |
| 65MN | 0.60-0.70 | 0.90-1.20 | 0.17-0.37 | 0.25 max | 0.035max | 0.035max |
| 75Mn | 0.72-0.92 | 0.17-0.37 | 0.7-1.0 | 0.4-0.6 | 0.035max | 0.035max |
| 75MnCr | 0.70-0.85 | 0.7-0.8 | 0.17-0.37 | 0.2-0.7 | 0.03 max | 0.03 max |
| 75SiMn | 0.70-0.90 | 0.7-1.2 | 0.4-0.8 | 0.25 max | 0.03 max | 0.03 max |
Specifications:
|
Impact Test AK.J/cm2 |
Endurance Test Times (5m) |
Dia 25mm-60mm | Dia 70mm-100mm | |||
| Surface | Core | Surface | Core | |||
| 50MN | ≥12 | ≥10000 | ≥56 | ≥35 | ≥56 | ≥28 |
| 60MN | ≥13 | ≥10000 | ≥58 | ≥38 | ≥58 | ≥29 |
| 65MN | ≥15 | ≥12000 | ≥60 | ≥42 | ≥60 | ≥30 |
| 75MnCr | ≥17 | ≥12000 | ≥60 | ≥52 | ≥60 | ≥50 |
| 75 SiMn | ≥16 | ≥12000 | ≥60 | ≥50 | ≥60 | ≥48 |
1. Main products: Custom Open Die Forging, Main Shaft, Wind Power Shaft, Stabilizer, Flange, Coupling, BOP Body, Tube Plate, Roller Forging, Roller Shell, Ring Forging, Gears, Gear Blank, Gear Shaft, Gear Wheel.
2. Materials: Carbon steel, Alloy steel
3.Supplying range: Shafts, Sleeves, Rings, Cylinders, Blocks, Modules etc
4. Process: Forging/Casting – Normalizing & Tempering – Proof Machining- Quenching & Tempering – Finish Machining
Applied Fields:1). Cement Plants2). Mines3). Power Stations4). Chemical Industry5). Machine IndustryAdvantage:1) High Hardness2) No Breakage3) Even Wearing4) Good Wear ResistancePackaging detail:1) Bag (1ton/bag)2) Iron Drum (800-950kgs/drum)Miaochuan's AdvantageA) We manufacture a wide range of grinding ball to meet your different demands.B) 18 years manufacturing experience.C) Miaochuan grinding ball is your best choice of one-stop grinding ball procurement.D) Professional grinding ball Supplier.E) Grinding ball Manufacturer.F) Grinding ball Exporter.G) Grinding ball Factory.H) Grinding ball Enterprise.I) Grinding ball Company
