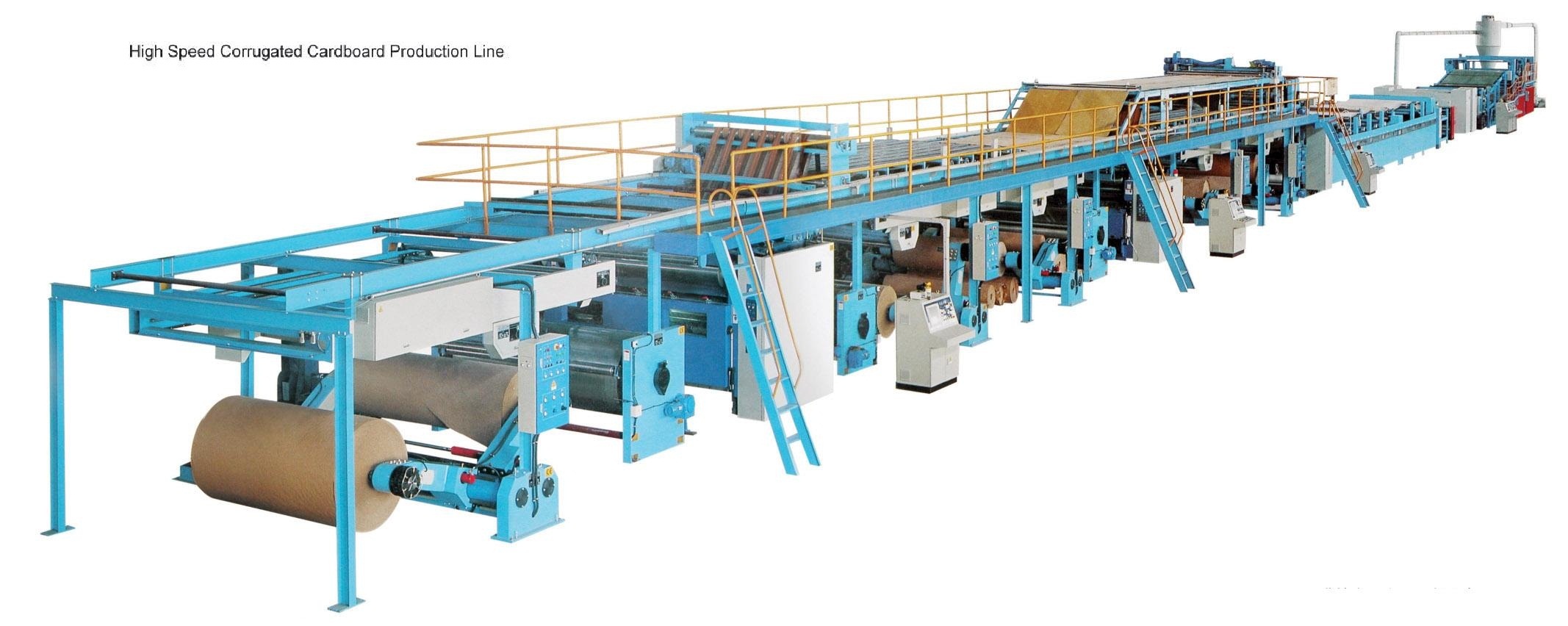

BMW7 Series H-Speed Corrugated Cardboard Paperboard Line
About us:
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.
Function and Features:
This production line is suitable for large quantity automatized manufacturing and it can produce good quality corrugated cardboard which can meet national standard completely.Higher productivity,better paper board quality,adoption of central control system,simple and easy operation,convenient to repair and maintenance,reliable and safe,greatly lower degree of manpower requirement .This production line adopts the most updated source-saving mode which get heat from the high-temperature guiding oil.Compared with the steam heating,it reduce the source by 60% so that ti can cut the cost effectively.It is an economical ideal product and suitable for big and medium cartoon manufacture.
1.The whole length of the line is 30~105 meters;
2.The whole power of the line is 200~450KW;
3.Mill roll standf:the two holder can lift independently;
4.Single facer:The diameter of the corrugating roll is 265mm-310mm,the power si 11KW-17KW;
5.Double layer gluing machine:Using the top and middle layer for gluing and the bottom for conveying the real paper;
6.Drying machine:the total length of the machine is 10 meters and it is made of 14 pieces of heater plate.
The main technical parameters
| Parameter |
Model |
| Three layers |
Five layers |
Seven layers |
| Processing width |
1400~2500 mm |
| Working Speed |
50~150 m/min |
| Equipment Height |
About 3.8m |
4.5m |
5.2m |
| The total length of the line |
About 30~50m |
90m |
105m |
| The total power consumption |
About 200KW |
350KW |
450KW |
| Heating mode |
Heat transfer oil,steam |
| The steam consumption |
2~2.5T/h |
3~3.5T/h |
4~4.5T/h |
| Type of Corrugation |
A |
B |
BC |
B |
| Shape of Corrugation |
UV |
| No. of Corrugation |
34±2mm |
38±2mm |
46±2mm |
50±2mm |
| Highness of Corrugation |
4.6~5.0 |
3.6~3.9 |
3.0~3.5 |
2.6~2.9 |
| Diameter of Roller |
215~310mm |
| Length of Roller |
1450~2050mm |
Advantage:
1.we promise you excellence in both quality and after-sale service.
2.we guarantee delivery your order in time.
3.as we are factory,we can provide you highestquality with the most competitive price.
4.If you are interested in our products and have any questions, please let us know, we will try our best to help you!
Thanks for your visit!
Some FAQs:
Q: How can I know if it is paid successfully?
A: We will send you a payment confirmation email upon receiving your payment
Q: How do you pack the products?
A: The machine is disassembled before shipping .Firstly we pack the main parts and spare parts by foam , then put them together to the carton and sealed with tape .In the end pack in wooden case. So it is very safe in shipping ! We have many pictures and videos about packing , if you want to know more , please contact us.
Q: How long can I receive the items?
A: Normally speaking, we will spend 4~6 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be a month by sea cargo. However, it still depends on what country you are, some may faster and some may slower.
Q: How to receive my order? Is it safe during shipping?
A: For the items you purchased, we will arrange shipping by sea or international express delivery to ship and usually the carriers are DHL, FedEx, TNT, and UPS. It shall be quite safe during shipping by sea or air. Additionally, we will purchase insurance as a guarantee for your order.
Q: How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
A: We will send you the Bill of Lading or tracking number after shipping your items, hereby please keep on checking your email.
Q: What is Warranty Policy
A: We provide 1 year warranty. During the 1 year warranty if any part is faulty, our company will give you replacing parts for free and help you to change the faulty parts. When the warranty expired, our company will still give you technician support for free. The only difference is the replacing part no longer free. So, we provide lifelong after sale service to you as long as you use our printer.
Q: If I still have questions to this product, what shall I do?
A: Please click "Inquire Now" below the page and submit your inquire or questions, we will reply you as soon as possible, or email to us.
