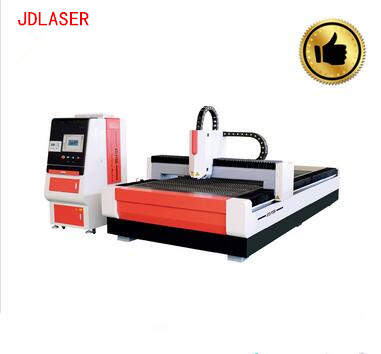

300W 500W 750W 1000W 2000W 3000W 8000W metal fiber laser cutting machines
0 likes
China [CN] A fiber laser is a laser in which the active gain medium is an optical fiber doped with rare-earth elements such as erbium. The way it generates its beam is distinctly different from that of a Co2 laser which uses resonators. Fiber lasers are much more ecofriendly than Co2 lasers using typically less than 50% power consumption compared to a Co2 Laser. They are also more reliable and cut parts up to 6mm thick 30-40% quicker than a Co2 Laser.
1). Lower operation cost,every hour only consumed 0.5W to 1.5W electricity,cutting all kinds of metal sheet by air.2).High performance qualified fiber generator,which is high reliability and longevity of service. Max life reach to more than 100000 hours.3).Higher cutting speed and efficient,Max cutting speed can be reach 10m/min in cutting 1mm mild steel.4).Free maintenance for fiber laser generator5).Smooth cutting surface,little deformation,pretty leveling appearance.6).Import transmission parts and servo motor, high dynamic movement performance, high cutting precision.7).Dedicated software enables graphic or text into instantly designed pr processed.Flexiable and easy operation.
1.Additional power and better beam quality provide cleaner cut edges and faster cutting speeds, typically 30-40% faster on thicknesses up to and including 6mm2.Ability to cut aluminium, copper and brass where a Co2 laser can’t3.Reliability: fiber lasers exhibit high vibrational stability, extended lifetime, and maintenance-free turnkey operation4. High quality edge finish5. High peak power and nanosecond pulses enable effective marking and engraving6. Intricate parts can be manufactured easily, quicker and far more cost effectively than machining or even Co2 lasers depending on thickness
|
Parameter of fiber laser cutting machines
|
|||
|
Model
|
XTC-F1530
|
||
|
Laser generator
|
IPG / Nlight / Raycus
|
||
|
Laser power
|
1000w
|
|
|
|
Laser wavelength
|
1070NM
|
|
|
|
Cutting table size
|
1500*3000NN
|
|
|
|
X/Y axis positioning accuracy
|
0.03MM/M
|
||
|
X/Y axis repositioning accuracy
|
0.05MM/M
|
|
|
|
Control System
|
Cypcut
|
|
|
|
Driving Mode
|
Double gear rack driving
|
|
|
|
Max cutting thickness
|
10mm for CS, 5mm for SS
|
|
|
|
Standard Collocation
|
Metal nesting software, dual-pressure gas route of 3 kind gas sources, dynamic focus, remote controller, etc.
|
||
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper Sheet,
Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
|
|
500w
|
1000w
|
2000w
|
|
Stainless steel
|
3mm
|
6mm
|
10mm
|
|
Carbon steel
|
6mm
|
10mm
|
20mm
|
|
Aluminum
|
2mm
|
3mm
|
4mm
|
1.service is available to each customer. And if any technical questions or problems, our engineers will help you and give you solutions on the phone or by face-to-face communication online.
2. One-year warranty is provided. (The detailed reference will be written into the final contract.)
3. Professional staff for installation and training if needed.
4. Spare parts are supplying on time or doing some inventory if promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock if good sales, then more convenient and helpful.
6. If the sales are good, we will arrange some famous exhibition fairs in the local or surroundings, and give our full support to our agents at the fair. We will provide our sample machines, catalog, DVD, manuals, etc. All native customers belong to our local agent, which is our basic rule. And we promise the final delivery is the same as displayed prototype.
