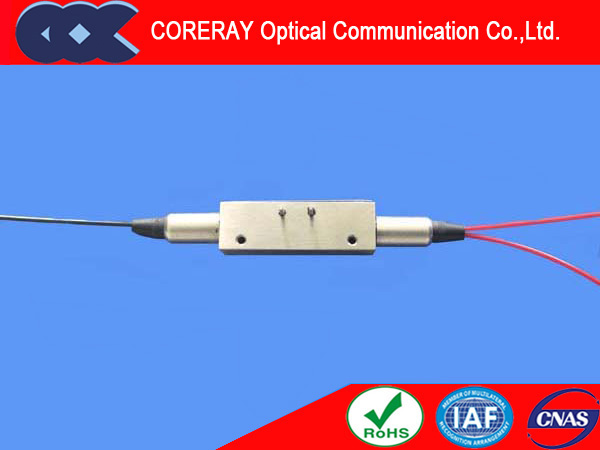

1x2 Solid State Optical Switch

Posting date : Mar 08, 2017

Click enlarge Image

Membership

Free Member Scince Dec 13, 2016

FOB Price

us $50 per piece

Min. Order Quantity

Supply Abillity

1000 pieces per month

Port

Shenzhen

Payment Terms

T/T

Package

CARTON

Keyword :

1x2 Optical Switch

Category

MISCELLANEOUS | Optical ph | Optical fi | Optical fi

Contact

sherry zhang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

coreray

Model Number

osw-1x2

HS-CODE

9001-10

Package & Delivery Lead Time

Package

CARTON

Delivery Lead Time

10 days

Specifications

Type of Certification

ISO9000

Reference no.

215855225

Name.

RoHS

Issued By

SGS

Start Date (validity period)

2017-02-11

End Date (validity period)

2017-02-11


Detailed Description

1x2 Solid State Optical Switches Features

Low Insertion Loss

Wide Wavelength Range

Low Crosstalk

High Stability, High Reliability

Epoxy-free on Optical Path

Latching and Non-latching

1x2 Solid State Optical Switches Application

Optical Signal Switching and Routing

Optical Network Protection and Restoration

Optical Network Monitoring

Video Distribution

Instrumentation Resource Sharing

Military Communications

1x2 Solid State Optical Switches Specification

Parameters		SOSW-1×2
Wavelength Range	nm	1295~1325,1520~1580
Testing Wavelength	nm	1310/1550
Insertion Loss	dB	Typ:0.7 ,Max:1.0
Return Loss	dB	≥50
Channel Cross Talk	dB	≥45
PDL	dB	≤0.10
Polarization Mode Dispersion	ps	≤0.20
TDL	dB	≤0.25
Power Handling	mW	300
Switching Speed	ms	50~200
Repeatability	dB	2K
Operating Temperature	°C	-40~+85
Storage Temperature	°C	-40~+85
Dimensions	mm	(L)58.2×(W)8.4×(H)8.4(±0.2)

1x2 Solid State Optical Switches Electrical Driving Information

The switch is actuated by applying a voltage pulse. Applying one polarity pulse, one light path will be connected and latched to the position. Applying a reversed polarity pulse, another light path will be connected and latched to the position after pulse removed.

Parameter	Minimum	Typical	Maximum	Unit
Driver Voltage	4.5	5	5.5*	V
Driver Current	110	140	195	mA
Pulse Duration	0.2	0.3	0.5	ms

Driving kit with USB and TTL interfaces and Windows TM GUI is available. We also offer RS232 interface as an option –please contact coreray sales.

2x1 optical switch

Optical Path	Pin 1	Pin 2
Port 2→Port 1	5V Pulse	GND
Port 3→Port 1	GND	5V Pulse

1x2 optical switch

Optical Path	Pin 1	Pin 2
Port 1→Port 2	GND	5V Pulse
Port 1→Port 3	5V Pulse	GND

The typical driver voltage of single stage is 2.5V.

Over this value will damage the device.

1x2 Solid State Optical Switches Ordering Information:SOSW-1x2-A-B-C-D-E-F-G

A	B	C	D	E	F	G
Type	Mode	Wavelength	Switch	Fiber Diameter	Fiber Length	Connector
1x1 1x2 2x1	SM:9/125um	13:1310nm 15:1550nm	2:dual stage 0:special	25:250um 90:900um	05: 0.5m 10: 1.0m 15: 1.5m	OO:None FP: FC/PC FA: FC/APC SP: SC/PC SA: SC/APC LP: LC/PC LA: LC/APC
