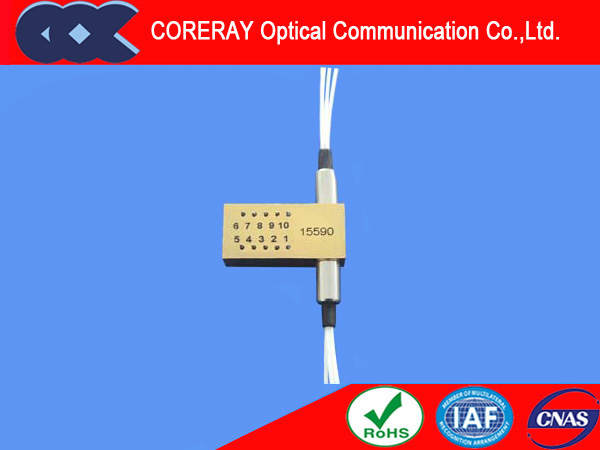

D2X2B Optical Switch
0 likes
China [CN] |
Parameters
|
|
OSW-D2x2B
|
|
|
Wavelength Range
|
nm
|
650～1310
|
1260～1670
|
|
Testing Wavelength
|
nm
|
650/780/850/980/1064/1310
|
1310/1490/1550/1625/1650
|
|
Insertion Loss
|
dB
|
Typ:0.6,Max:1.0
|
Typ:0.5 ,Max:0.8
|
|
Return Loss
|
dB
|
≥30
|
≥50
|
|
Crosstalk
|
dB
|
≥35
|
≥50
|
|
PDL
|
dB
|
≤0.05
|
|
|
WDL
|
dB
|
≤0.25
|
|
|
TDL
|
dB
|
≤0.25
|
|
|
Repeatability
|
dB
|
≤±0.02
|
|
|
Power supply
|
v
|
3.0 or 5.0
|
|
|
Lifetime
|
Cycle
|
≥107
|
|
|
Switch Time
|
ms
|
≤8
|
|
|
Transmission Power
|
mW
|
≤500
|
|
|
Operation Temperature
|
℃
|
-40～+85
|
|
|
Storage Temperature
|
℃
|
-40～+85
|
|
|
Weight
|
g
|
16
|
|
|
Dimension
|
mm
|
(L)27×(W)12.5×(H)8.2(±0.2)
|
|
|
Optical Path
|
Electric Drive
|
Sensor Status
|
|||||
|
D2X2B
|
1
|
5
|
6
|
10
|
3-4,7-8
|
2-3,8-9
|
|
|
Latching
|
P1-P3 P1’’-P3’’
|
N/A
|
N/A
|
GND
|
+5V
|
OPEN
|
CLOSE
|
|
P1-P4 P1’’-P4’’
P2-P3 P2’’-P3’’
|
+5V
|
GND
|
N/A
|
N/A
|
CLOSE
|
OPEN
|
|
|
Non-Latching
|
P1-P3 P1’’-P3’’
|
N/A
|
N/A
|
N/A
|
N/A
|
OPEN
|
CLOSE
|
|
P1-P4 P1’’-P4’’
P2-P3 P2’’-P3’’
|
+5V
|
N/A
|
N/A
|
GND
|
CLOSE
|
OPEN
|
|
|
|
Voltage
|
Current
|
Resistor
|
|
5V Latching
|
4.5~5.5
|
36~44mA
|
125Ω
|
|
5V Non-Latching
|
4.5~5.5
|
26~32mA
|
175Ω
|
|
3V Latching
|
2.7~3.3
|
54~66mA
|
50Ω
|
|
3V Non-Latching
|
2.7~3.3
|
39~47mA
|
70Ω
|
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
|
Mode
|
Wavelength
|
Voltage
|
Control Model
|
Fiber Diameter
|
Fiber Length
|
Connector
|
|
SM:9/125um
M5:50/125um
M6:62.5/125um
|
85:850nm
13:1310nm
14:1490nm
15:1550nm
162:1625nm
165:1650nm
13/15:1310/1550nm
|
3:3v
5:5v
|
L:Latching
N:Non-Latching
|
25:250um
90:900um
20:2.0mm
30:3.0mm
|
05: 0.5m
10: 1.0m
15: 1.5m
|
OO:None
FP: FC/PC
FA: FC/APC
SP: SC/PC
SA: SC/APC
LP: LC/PC
LA: LC/APC
|
