membrane switch keypads with small window and 3 keys
Posting date : Dec 09, 2016
Membership
Free Member Scince Oct 18, 2016
FOB Price
$1-3/pcs
Min. Order Quantity
100pcs
Supply Abillity
800000000pcs/month
Port
Shenzhen
Payment Terms
T/T,Western Union
Package
Carton box
Keyword :
Category
Contact
vincent
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
chunyip
Model Number
CY014
HS-CODE
-
Package & Delivery Lead Time
Package
Carton box
Delivery Lead Time
Shipped 15days after the payment
Specifications

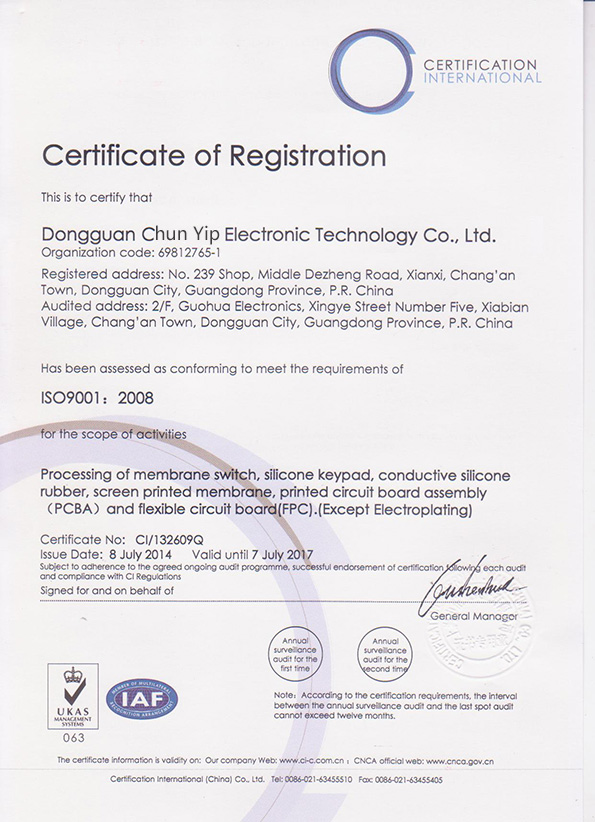

Type of Certification
ISO
Reference no.
CI/132609Q
Name.
ISO9001:2008
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00

Detailed Description
membrane switch keypads with small window and 3 keys
Application:Home Appliances,Communication equipment,computer keyboard
Keypad Button Material:PET,PC,Silicone,Acrylic
Name: Memebrane Keypad Switch
Design:CAD/AI/CDR format
Certification:ROHS,REACH,CE,IS
Test:100%QCMaterial:PET,PC,Silicone,Acryliy
Color:According to pantone color number
Back-adhesive:3M467,3M468,or others
Keys:Flat or Embossing
Factory Experience:16 years customized factory

The membrane switch circuitry is most often screen printed using conductive inks, which are typically made of silver, carbon, and/or graphite.And Membrane switches are user-equipment interface utilities that allow for the communication of commands from users to electronic devices.


One-stop solutions for what you expect are below:

1. Highly illuminated graphic overlay with silk screen/ off-set / gradient / digital printing2. Membrane swith keypad with integrated metal domes, SMT LEDs, capacitors, resistors,diodes etc.

3. ESD production, IP67 and Chemical / UV/ scratch resistant to provide long life cycle in harsh environment4. PCB/FPC/RUBBER/FFC Assemblies with reflowing and ultrasonic soldering5. Latest LGF/LED/EL backlight 6. flat type, embossed type, metal dome, polydome with good tactile feedback

7. Can meet main specifications as below:



Electronic Characteristic <35V ( DC )   <100mA   1W Life Expectancy flat type ≥ 500 million times, tactile type: ≥ 100 million times
  Contact  Resistance 40Ω--500Ω (According the trace length and materials to confirm) Operation Temperature -25 °c ~ + 80 °c 90% RH or less
Insulation resistance >100MΩ 250V DC StorageTemperature -25 °c ~ + 85 °c
Withstand Voltage 125V AC for 1 minute Humidity + 40 °c   90 % ~ 95%   240 hours
Operation Force 50-500g  Switch stroke flat type 0.1-0.5mm, tactile type 0.6-1.5mm



Packaging & Shipping

Carton boxes or according to customers' requirements to get enough protection for goods in export transportation



Our Services

 1. Custom design highly engineered for membrane switch, keyboard, graphic overlay, labels

2. Membrane switch manufacturing

3. Assemblies integrated with PCB/FPC/RUBBER KEY/METAL BACKER/PLASTIC HOUSING

4. Silk screen printing, gradient printing, off-set and digital printing

5. Laser cutting

6. Value-added service at supply of metal dome, LED, capacitor, resistance, metal parts, transformers

7. 100% inspected and function tested in-house before shiment for zero-defect quality assurance.
