■ Features

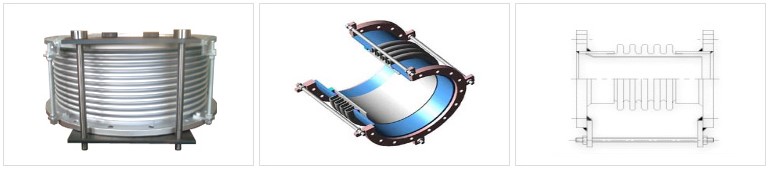

- The Gimbals expansion joint is basically the same as the hinge type, except that instead of being limited to deflection in only one plane. It contains two sets of hinge pins or pivots, the axis of each set perpendicular to the other. Each set of pins is connected to each other with a central gimbals ring, in much the same way that a universal joint on an automobile works. This unit provides the same type of restraint and resistance to axial forces, such as the pressure thrust, and to shear forces as the hinge type.
■ Application
- For absorption of extension/compression low-pressure piping, exhaust piping, ducts, flues, etc., and for vibration absorption of suction and exhaust pipes of engines and blower, and at the inlet and outlet of pumps, etc.
■ Pressure
- 0.1MPa to 0.3 MPa
