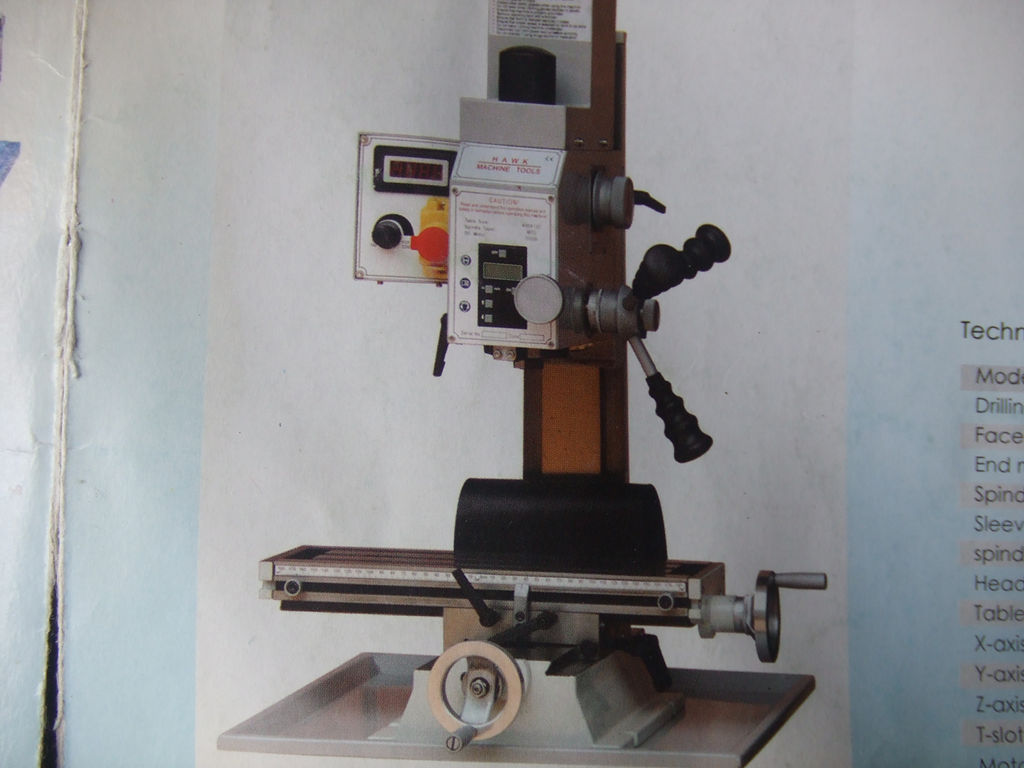

milling and drilling machine FD-16/20/25
Posting date : Oct 27, 2016
Membership
Free Member Scince Oct 19, 2016
FOB Price
USD560
Min. Order Quantity
1
Supply Abillity
1OO
Port
SHANGHAI
Payment Terms
T/T.L/C
Package
PLYWOOD
Keyword :
Category
Contact
Mr,xia
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
FLYDRAGON
Model Number
FD-16/20/24
HS-CODE
8456-30
Package & Delivery Lead Time
Package
PLYWOOD
Delivery Lead Time
30 DAYS
Detailed Description
Drilling capacity in steel 16 mm Face mill capacity max. 30 mm End mill capacity max. 16 mm Thread cutting max. M 10 Distance spindle to column 160 mm Distance spindle / table 90 - 330 mm Spindle stroke 58 mm Spindle speed, stepless 50 - 2500 rpm Spindle taper MT 2 Table size / T-slot size 500 x 130 mm / 8 mm Travel (x / y) 240 / 155 mm Mill head tiltable -45° to +45° Height adjustment of mill head 240 mm Motor power output S1 100% 0,50 kW / 230 V Motor power input S6 40% 0,75 kW / 230 V Machine dimension (W x D x H)* 750 x 640 x 800 mm WModel FD-210 FD-240* 500G FD-240* 700G Max. swing over bed 210mm 250mm Φ 250mm Φ 250mm Distance between centers 400mm 550mm 550mm 750mm Spindle bore 21mm 21mm 26mm 26mm Taper of Spindle bore MT3 MT3 MT4 MT4 Range of Spindle speeds 125-2000rpm 125-2000rpm 125-2000rpm 125-2000rpm Taper of tailstock quill MT2 MT2 MT2 MT2 Metric threads can be cut 0.4 -3.5mm 0.4 -3.5mm 0.2 -4mm 0.2 -4mm Inch threads can be cut 8-44TPI 8-44TPI 8-56TPI 8-56TPI Motor power 750W 750W 750W 850W NW/GW 105/ 125Kg 120/ 145Kg 130/ 155Kg 150/ 180Kg eight approx. 130 kg
