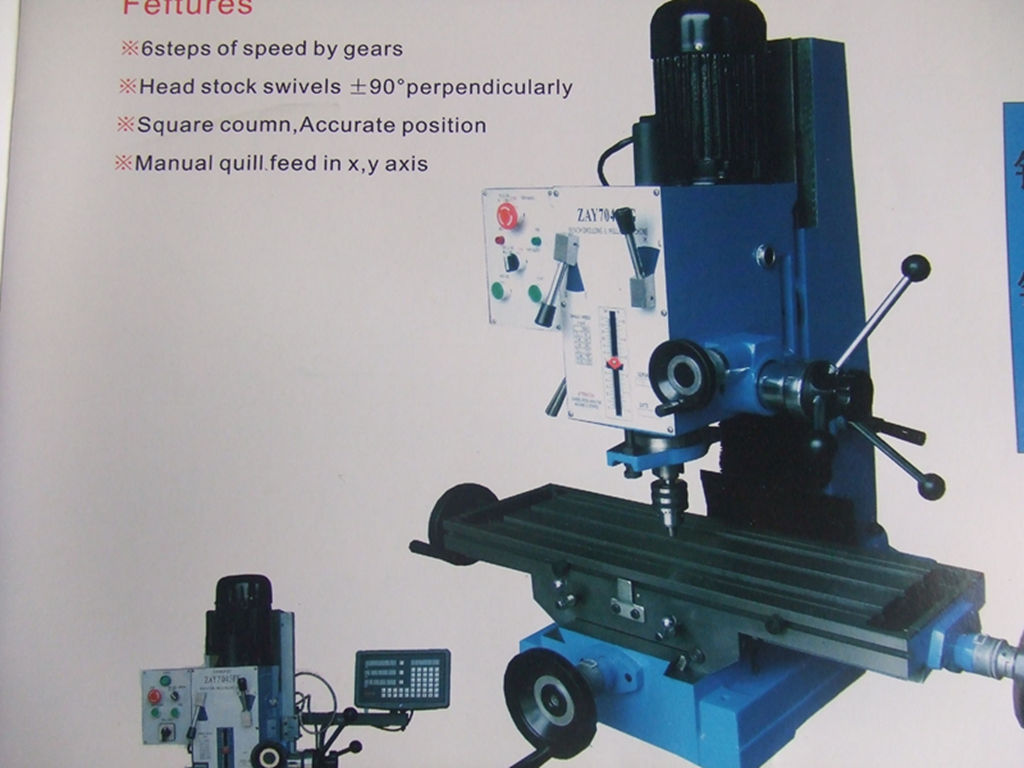

drilling and milling machine ZAY7045FG
Posting date : Oct 27, 2016
Membership
Free Member Scince Oct 19, 2016
FOB Price
USD985
Min. Order Quantity
1PIECE
Supply Abillity
100PIECES/MONTH
Port
SHANGHAI
Payment Terms
T/T.L/C
Package
PLYWOOD
Keyword :
Category
Contact
Mr,xia
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
FLYDRAGON
Model Number
ZAY7045FG
HS-CODE
8456-30
Package & Delivery Lead Time
Package
PLYWOOD
Delivery Lead Time
30 DAYS
Detailed Description
Model: ZAY7045M Main specifications(mm):;working table can swivel 1)Max drilling capacity(mm): 45 2)Max tapping capacity(mm): M12 3)Max face milling capacity(mm): 80 4)Max end milling capacity(mm): 32 5)Max. distance from spindle nose to table(mm): 450 6)Distance from spindle axis to colum(mm): 285 7)Spindel travel(mm): 130 8)Spindle taper: MT4 9)Step of spindle speed: 6 10)Range of spindle speed(r. p.m): 80~1250 / 95~1500 11)Speed of automatic feeding spindle feed: 6 12)Automatic feeding amount of spindle: 0.06~0.3 13)Swivle angle of headstock(Headstock perpendicular): ± 90° 14)Table size(mm): 800*240 / 700*240 15)Forward and backward travel of table(mm): 175 16)Left and right travel of table(mm): 500/400 17)Motor power: 1.5kw(2Hp) 18)Vol /freq: As customer’ s requirement 19)Net height(Wthout stand) (mm): 1060 20)Net weight(kg): 315
