Automatic Film Applicator

본문 바로가기


Home > Product > Automatic Film Applicator
Product
Automatic Film Applicator
Posting date : Oct 27, 2016
Membership
Free Member Scince Sep 25, 2015
FOB Price
2466-3988USD
Min. Order Quantity
1
Supply Abillity
in stock
Port
Guangzhou Huangpu Port
Payment Terms
TT
Package
Wooden carton
Keyword :
Category
Contact
Owen Chan
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
BEVS
Model Number
BEVS 1811
HS-CODE
8424-81
Package & Delivery Lead Time
Package
Wooden carton
Delivery Lead Time
1-2weeks

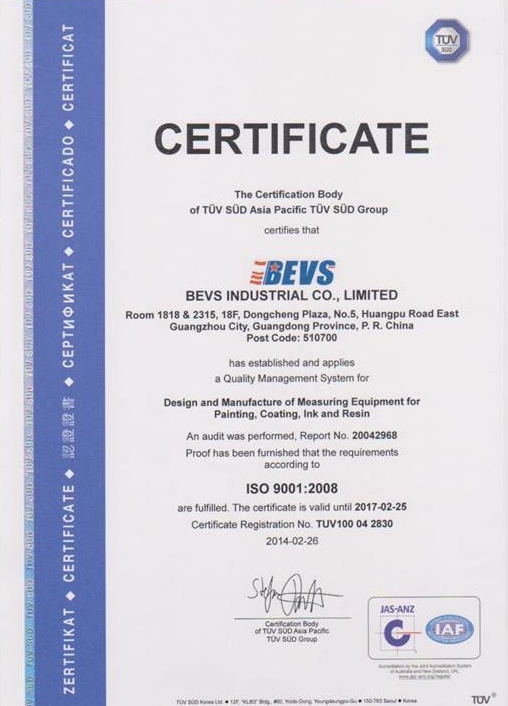

Specifications
Type of Certification
Painting, coating, ink, resin
Reference no.
TUV100042830
Name.
Quality Management System
Issued By
TUV
Start Date (validity period)
2014-02-26
End Date (validity period)
2017-02-27
Scope
Painting, coating, ink, resin

Patent
No. of Patent
ZL 2014 2 08474938
Start Date
0000-00-00
Detailed Description
Introduction:
BEVS Automatic Film Applicators are made with highprecision machined components,sturdy mainframe andheavy duty power train assembly,to ensure long termreliable operation.Consistent drawdown conditions suchas speed,flatness,combined with applicator gap andgeometry are essential to obtain perfectly reproduciblesamples,ths eliminating human error and uncertainty.

Software Introduction:
Advanced touch screen technology, Chinese/ ◆ English available.
Film size:A4,A3 and User Defined.
Adjustable speed.
Report output:tab in the coating's name,viscosity,thickness for the report to be output

Technical Specification:
Model                                      BEVS1811/1                    BEVS1811/ 2
Speed(mm/ sec)                         20- 300                             20- 300
Stroke Length(Max)( mm)              360                                  360
Test Pane(mm)l                          420×300                          420×300
Test Platform                       Glass bed with clamp               Vacuum bed
Bar Coater Diameter(mm)             10-13                                10-13
Capacity Length(mm)                      320                                  320
Standard                                   ASTM D328                        ASTM D328
Power                                 230±10%, 50/ 60HZ                 230±10%, 50/ 60HZ

Order Information:
BEVS 1811/ 1 Automatic Film Applicator ( with glass bed)
BEVS 1811/ 2 Automatic Film Applicator ( with vacuum bed)
