Best Selling Multi Deck Circular Vibrating Screen For Sale,Screening Sand Washing Machine
HS-CODE
-
Package & Delivery Lead Time
Package
unit
Detailed Description

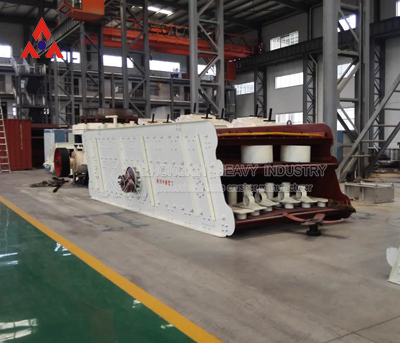

1、Best selling multi deck Circular Vibrating Screen for sale 2、Type:Necessary Auxiliary EquipmentInput Size:0mm--1000mmProcessed Materials:Limestone, Granite, Gabbro, Basalt, River Stone, Coal Gangue, Quartz, Diabase,Iron Ore, Copper Ore, Zinc Ore, etc.Applications:Aggregates Shaping, Mechanism sand, Bituminous Concrete, Metal Mine, Chemical, Road, Railway,Metallurgy, Construction, Highway, Water ConservancyCapacity:10-500TPH Delivery Detail: After the payment, according to customer demandPackaging Details:International standardInstallation:Engineer assignedColor:As your requestMotor Type:AC Motor3、Product Description：Circular vibrating screen is a kind of high efficiency vibrating screen. With one shaft, it’s movement locus like a circle. There are single layer, double layer or there layers types of round vibrating screens for choosing. It can be used in screening aggregate, also can be used in coal dressing, mineral separation, building materials, electricity, chemical industry and so on.The Circular Vibrating Screen is consist of vibrator, mesh box, bearing, suspension gear, and motor. Circular Vibrating Screen is made by quality stick steel plate, which give it long lifetime for running. the Circular Vibrating Screen spring designed and made by our company are of high precision and efficiency. 4、Working Principle：Circular Vibrating Screen uses electric exciter as vibrating source, the material will be thrown around the screen, at the same time doing forward sports, in order to achieve the screening purpose. Material from the feeder evenly enters into the Circular Vibrating Screen's feeding inlet, with multilayer sieves to produce various of products and unqualified products on the screen or under the screen, then discharging from the outlet repectively. Circular Vibrating Screen can be used in the automatic production line.The circular vibrating screen adopts the vibration exciter with barrel type of eccentric shaft and block to adjust the swing. The vibration exciter is installed on the lateral plate of the sieving box. The motor makes the exciter swing round speedily through tire coupling. The continuous forced circular motions of sieving box were achieved through the powerful centrifugal force. Materials in the sieve case can be separated and screened from the sieve pore in this process.The material falls from the upper side of machine, then into the impeller, with the effect of centrifugal force, the material was crushed with other parts of the material which shunt around the impeller in a umbrella shape. After the cross impacting, the materials will be forming an eddy current and then impact, crush with each other again, then discharging from the lower part. The whole system forms a close circuit and through multi-cycles, finally matched granularity of the final product by the control of screen set.5、Product Features：1.Simple structure and easy to disassemble and replace;2.Steady vibration, reliable operation, low noise,3. Low energy consumption, long service life,4.Convenient maintenance, light weight, small volume,5. Handy maintenance and durability;6.With enclosed structure fuselage, dust pollution is prevented.7.High efficiency and little noise pollution;8. Stable structure and strong exciting force.6、Product Specifications：ModelScreen Size(mm)LayersScreen Mesh (mm)Max Feed Size(mm)Capacity (t/h)Power (Kw)Vibrating Frequency(r/min)Double Swing (mm)2YK12373700*120023-8010010-8011750-9505-93YK12373700*120033-8010010-8011750-9505-92YK15484800*150023-8010030-20015750-9505-93YK15484800*150033-8010030-20015750-9505-92YK18484800*180023-8010050-25018.5750-9505-93YK18484800*180033-8010050-25018.5750-9505-92YK18606000*180023-8010060-30022750-9505-93YK18606000*180033-8010060-30022750-9505-94YK18606000-180043-8010060-30030750-9505-92YK21606000*210023-8010080-40022700-9005-93YK21606000*210033-8010080-40030700-9005-94YK21606000*210043-8010080-40030700-9005-92YK24606000*240025-80100100-50030700-9005-93YK24606000*240035-80100100-50037700-9005-94YK24606000*240045-80100100-50037700-9005-9 url:http://www.zxcrushers.com
