China Pneumatic Valve Actuator
Posting date : Oct 18, 2016
Membership
Free Member Scince Oct 18, 2016
FOB Price
389
Min. Order Quantity
30
Supply Abillity
100000
Port
Shanghai
Payment Terms
L/C,T/T,D/A,D/P
Package
International standard packaging
Keyword :
Category
Contact
Jeasin Lee
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Yaao
Model Number
YV-PVA-01
HS-CODE
8540-81
Package & Delivery Lead Time
Package
International standard packaging
Delivery Lead Time
15
Detailed Description

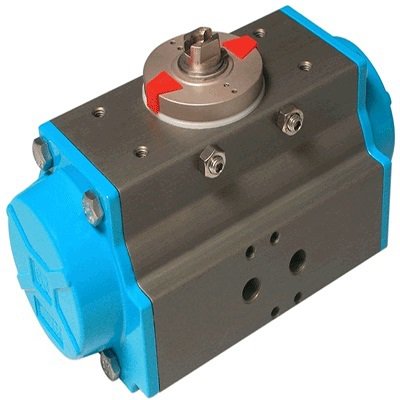

Pneumatic Valves Actuator Description:
14 Types ( DA 32- DA 270 ).
Offering a broad range of pneumatic rack & pinion actuators.
The ports are NAMUR standard for easy solenoid valve connection.
ISO 5211 dimensions on all sizes.
All internal and external surfaces are anodized for corrosion resistance.
Actuator have a regulation range from-4° to +4°.
Shaft bearings isolate the pinion gear from the housing and support the shaft for high cycle.
Actuator can be lifted on many styles of quarter-turn valve, including ball, butterfly and plug and dampers.

Pneumatic Valve Actuator Operation:
Working pressure: 2.5 Bar – 8 Bar.
Working Temputure:
Standard range: -20℃ - +80℃.
Low temperature range: -40℃ - +80℃(HNBR).
High temperature range: -20℃ - +150℃(vition).
Factory lubricated for life under normal vorking.
Operating media – Dry or lubricated air, non-corrosive and inert gas or light hydraulic oil.
Angle of rotation: 0° to -90°± 4°.

Manufacturer: China Yaao Forged Valve Co., Ltd
Sales Contacts: Jeasin Lee
Sales e-mail: sales@yaaovalve.com
