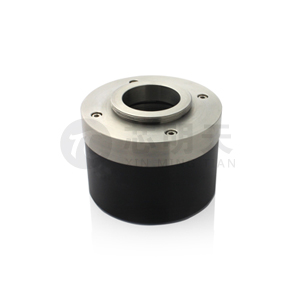

Piezoelectric Objective Scanners with 3D Imaging
Posting date : Dec 12, 2023
Membership
Free Member Scince Oct 17, 2016
FOB Price
according to the types
Min. Order Quantity
1
Supply Abillity
100
Port
Harbin
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
CoreMorrow
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CoreMorrow
HS-CODE
8541-60
Package & Delivery Lead Time
Package
carton
Detailed Description
  • compact structure
  • long operation life
  • Quick  response
  • Large capacity

Parameters:

Type P76.Z100S P76.Z100K Units
Active axes Z Z
Nominal travel range(0~+120V) 80 80 μm±20%
Max. travel range(-20~+150V) 110 110 μm±20%
Resolution 5 2.5 nm
Closed-loop linearity 0.1 - %F.S.
Repeatability 0.02 - %F.S.
Stiffness in motion 0.8 08 N/ μm±20%
Unloaded response frequency 440 440 Hz±20%
Max load capacity 500 500 g
El.capacitance 7.2 7.2 μF±20%
Material steel/aluminum steel/aluminum
Weight 0.6 0.6 Kg±5%
Cable length 1.5 1.5 m±10mm
