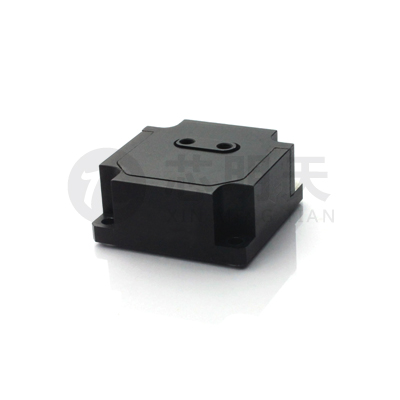

N60 Piezoelectric Nanopositioning Stages-Quick Response
Posting date : Dec 18, 2023
Membership
Free Member Scince Oct 17, 2016
FOB Price
according to the types
Min. Order Quantity
1
Supply Abillity
100
Port
Harbin
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
CoreMorrow
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CoreMorrow
HS-CODE
8541-60
Package & Delivery Lead Time
Package
carton
Delivery Lead Time
15 workdays
Detailed Description
  • small volume,28 × 28 × 12.5mm
  • high resolution

  • quick  response
  • loading: 200g
Type N60.X30S N60.X30K Units
Active axes X X
Sensor SGS -
Nominal travel range(0~+120V) 24 24 μm±20%
Max. travel range(-20~+150V) 34 34 μm±20%
Resolution 1 0.5 nm
Closed-loop linearity 0.2 - %F.S.
Repeatability 0.05 - %F.S.
Stiffness in motion direction 0.3 0.3 N/μm±20%
Unloaded response frequency 1.5 1.5 KHz±20%
Max load capacity 200 200 g
El.capacitance 0.8 0.8 μF±20%
Material steel / aluminum steel / aluminum
Weight 80 80 g±5%
Cable length 1.5 1.5 m±10mm
