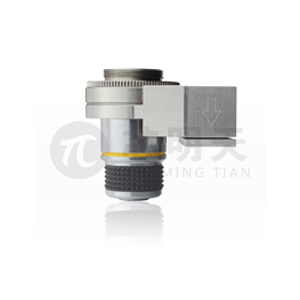

Lens nanopositioners with High speeding
Posting date : Dec 18, 2023
Membership
Free Member Scince Oct 17, 2016
FOB Price
according to the types
Min. Order Quantity
1
Supply Abillity
100
Port
Harbin
Payment Terms
T/T
Package
carton
Keyword :
Category
Contact
CoreMorrow
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
CoreMorrow
HS-CODE
8541-60
Package & Delivery Lead Time
Package
carton
Detailed Description
  • compact structure
  • High response frequency
  • open loop / closed loop





Parameters:

Type P72.Z100S P21.Z100K Units
Active axes Z Z
Sensor SGS -
Nominal travel range(0~+120V) 80 80 μm±20%
Max. travel range(-20~+150V) 110 110 μm±20%
Resolution 5 2.5 nm
Closed-loop linearity 0.15 - %F.S.
Repeatability 0.05 - %F.S.
Stiffness in motion 1.4 1.4 N/μm±20%
Unloaded response frequency 350 350 Hz±20%
Max load capacity 200 200 g
El.capacitance 3.6 3.6 μF±20%
Material steel steel
Weight 150 150 g±5%
Cable length 1.5 1.5 m±10mm
