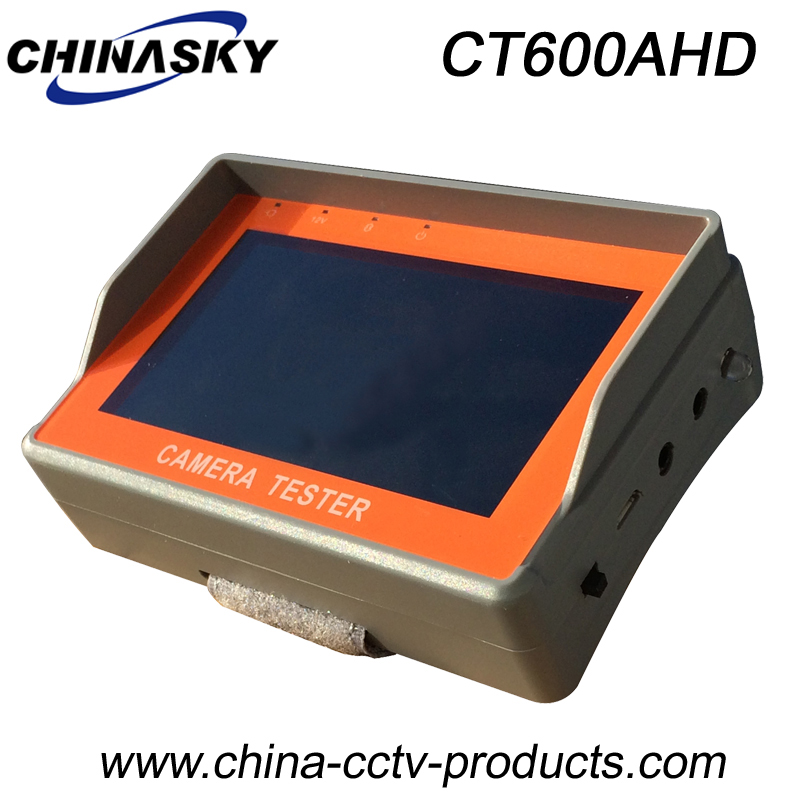

4.3” TFT-LCD Analogue and AHD Camera CCTV Tester Monitor
0 likes
China [CN] |
Model
|
CT600AHD
|
|
Video test
|
|
|
Video System
|
NTSC/PAL Automatically recognize
|
|
Video level
|
1VPP
|
|
Display screen
|
4.3-inch LCD 480 * RGB * 272 (QVGA) resolution, 64K color
|
|
Screen adjustment
|
Video display brightness, contrast, color saturation adjustable, LCD backlight brigh tness adjustable
|
|
Video input / output
|
1 channel BNC Video IN
|
|
HD AHD Test
|
|
|
SD signal Format
|
NTSC ,PAL
|
|
HD video signal
|
HD AHD
|
|
Resolution
|
D1, 720P, 960P, 1080P
|
|
Signal Level
|
1Vpp
|
|
12V power output
|
|
|
Power output
|
Temporary power output 12V 1A DC
|
|
|
USBX1 5V1A output
|
|
Audio test
|
|
|
Audio test
|
Input audio signal, and played on the internal speaker
|
|
Power supply
|
|
|
External power supply
|
DC 5V(2A)
|
|
Battery-powered
|
Built-in 3.7V li-polymer battery, Capacity 2600mAh
|
|
Charge
|
Charge time 3-4 hours Battery power time 8 hours
|
|
Power saving features
|
Low power consumption, automatic power off, Real-time display of battery level
|
|
System settings
|
|
|
Language settings
|
Chinese, English user selectable
|
|
Auto power off
|
Disable / 5-60 minutes
|
|
Cable test
|
||
|
cable test
|
Test any two or more wire cable Display connect sequence and remote number
|
|
|
LED Light
|
1*35lm LED light
|
|
|
Working environment and Specifications
|
|
-20ºC---+70ºC
|
|
30%-90% Rh
|
