refractroy blanket for furnace linears

Posting date : Oct 12, 2016

Click enlarge Image

Membership

Free Member Scince Oct 11, 2016

FOB Price

1USD/KG

Min. Order Quantity

Supply Abillity

100000TON

Port

any China port

Payment Terms

30%TT, 70% TT /LC

Package

CASE

Keyword :

refractroy blanket

Category

STONE & GLASS | Ceramic pr | Other refr | Refractory

Contact

Molly

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

HENGRUI

HS-CODE

6903-20

Package & Delivery Lead Time

Package

CASE

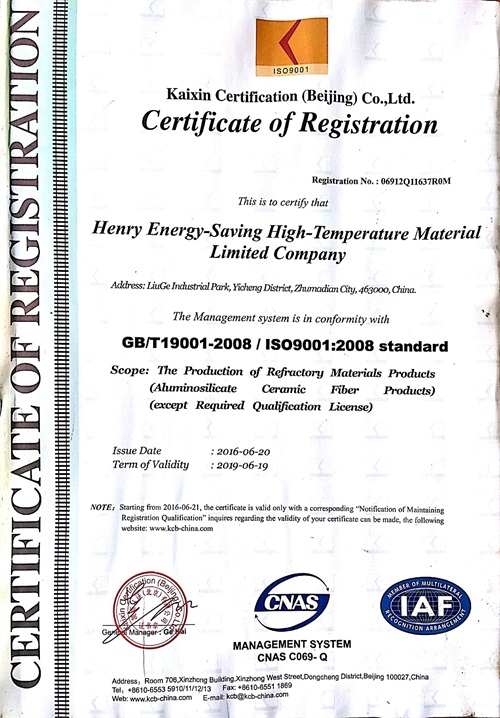

Specifications

Type of Certification

iso

Reference no.

06912Q11637ROM

Name.

ISO9001:2008

Issued By

KAIXIN CERTIFICATE BEIJING CO LTD

Start Date (validity period)

2016-06-20

End Date (validity period)

2019-06-19


Detailed Description

Descriptions:

Hengrui ceramic fiber blanket is made of special ceramic fiber through double needle-punching processing. The double needle-punching techniques improve the degree of fiber intertexture, and the performance of delamination resistance as well as tensile strength. The blanket does not contain any bonding agent and with the characteristics of stable chemical performance, resistance to the erosion of most chemicals,The physical property like refractory and insulation keep same when meet with oil,water or steam.

Characteristics:

Excellent chemical stability,nonflammable .
Low thermal conductivity and good insulation.
Good tensile strength and springiness.
Excellent performance of soundproofing Good obstructing and resistance to heat-shock.

Applications:

Internal and external lining for industry furnace.
Internal and external insulation for Pipeline.
Insulation for home application, nuclear power and aerospace .
Joint sealing and filing insulation.
Expansion seals/pipe coverings.

Technical Index:

Ceramic Fiber Blanket		HR1050	HR1260ST	HR1260HP	HR1350 HA	HR1430 Zr	HR1600 PMF
Classification Temperature(℃)		1050	1260	1260	1350	1430	1600
Working Temperature(℃)		900	1050	1050	1200	1250	1400
Density(KG/m3)		96-160	96-160	96-160	96-160	96-160	96-160
Liner Shrinkage (24h,128 Kg/M3)		≤2.4(900℃)	≤2.3(1000℃)	≤2.4(1050℃)	≤2.2(1150℃)	≤3(1250℃)	≤1.5(1400℃)
Tensile Strength Kpa(128Kg/M3)		40	80	80	80	80	100
Thermal Conductivity Rate (128 Kg/M3 ,W/m.k)	400℃	0.08	0.08	0.08	0.08	0.08	-
	800℃	0.16	0.16	0.16	0.16	0.16	0.16
	1000℃	-	0.23	0.23	0.23	0.21	0.20
Chemical Composition(%)	Al2O3	42-44	45-46	47-49	52-55	38-42	72-75
	Al2O3+SiO2	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0
	ZrO3	-	-	-	-	15-17	-
	Other	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0
