ceramic fiber pipe for glass industry

Posting date : Oct 12, 2016

Click enlarge Image

Membership

Free Member Scince Oct 11, 2016

FOB Price

2USD/KG

Min. Order Quantity

Supply Abillity

100000TON

Port

any China port

Payment Terms

30%TT, 70% TT /LC

Package

CASE

Keyword :

ceramic fiber pipe

Category

STONE & GLASS | Ceramic pr | Other refr | Refractory

Contact

Molly

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

HENGRUI

HS-CODE

6903-90

Package & Delivery Lead Time

Package

CASE

Specifications

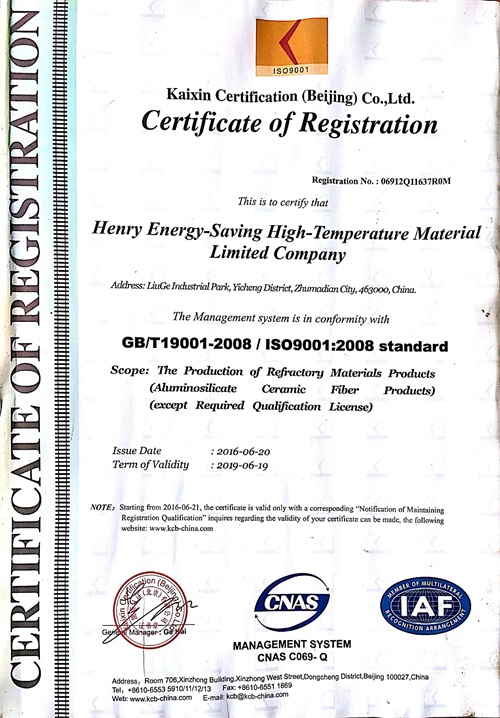

Type of Certification

iso

Reference no.

06912Q11637ROM

Name.

ISO9001:2008

Issued By

KAIXIN CERTIFICATE BEIJING CO LTD

Start Date (validity period)

2016-06-20

End Date (validity period)

2019-06-19


Detailed Description

Hengrui ceramic fiber pipe are made of high-quality ceramic fiber bulk by adopting the technique of vacuum forming. The purpose of making these products is to meet the special requirements of insulation in industrial field. Various products need to have specialized molds according to their unique shape and size for meeting customers’ requirements. All formed shapes have a lower shrinkage within applicable temperature, and can maintain the characteristics such as insulation, lightweight, etc. During the period of using the products, they won’t be eroded by lots of molten metal.

Characteristics:

Can be made into various of complex shapes, high dimension accuracy.
Contact with flame directly,no odor and volatile gases at high temperatures.
High mechanical strength，resistance to gas flow.
Low shrinkage,low thermal conductivity.
Excellent strength in high temperature and thermal stability.

Application:

Observation of industrial furnace.
Industrial furnace burner, door.
Plug and launder of Aluminum Products Industry.
Lining refractory of high-temperature laboratory furnace.
Thermal insulation of domestic and industrial heating devices
Non-ferrous metal melting tank padded, casting riser.
Roller furnace insulation bricks.

Technical Index:

Vacuum Formed Shapes		HR1260ST	HR1260HP	HR1350HA	HR1430Zr	HR1600PMF
Density(KG/m3)		280-400	280-400	280-400	280-400	350-550
320kg/m3/at()℃/24h Linear Shrinkage Rate(%)		≤1.5 (1000)	≤1.5 (1000)	≤1.5 (1100)	≤2.0 (1200)	≤1.5 (1500)
Flexural strength(mpa)		≧0.6	≧0.6	≧0.6	≧0.6	≧0.6
Thermal Conductivity Rate(W/m.k)	400℃	0.08	0.08	-	-	-
	600℃	0.15	0.15	0.14	0.12	-
	800℃	0.20	0.19	0.18	0.16	0.15
	1000℃	-	-	0.21	0.19	0.18
Chemical Composition (%)	Al2O3	44-46	47-49	52-55	38-43	70-72
	Al2O3+SiO2	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0
	ZrO3	-	-	-	15-17	-
	Other	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0

The result is average value not guarantee value,fluctuate within the standard value, for more details about our products properties or technical support, please contact Hengrui Technical Department .
