Chinese supplier ceramic fiber block

Posting date : Oct 12, 2016

Click enlarge Image

Membership

Free Member Scince Oct 11, 2016

FOB Price

6USD/ONE

Min. Order Quantity

Supply Abillity

100000TON

Port

any China port

Payment Terms

30%TT, 70% TT /LC

Package

CASE

Keyword :

ceramic fiber block

Category

STONE & GLASS | Ceramic pr | Other refr

Contact

Molly

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

HENGRUI

HS-CODE

6903-

Package & Delivery Lead Time

Package

CASE

Specifications

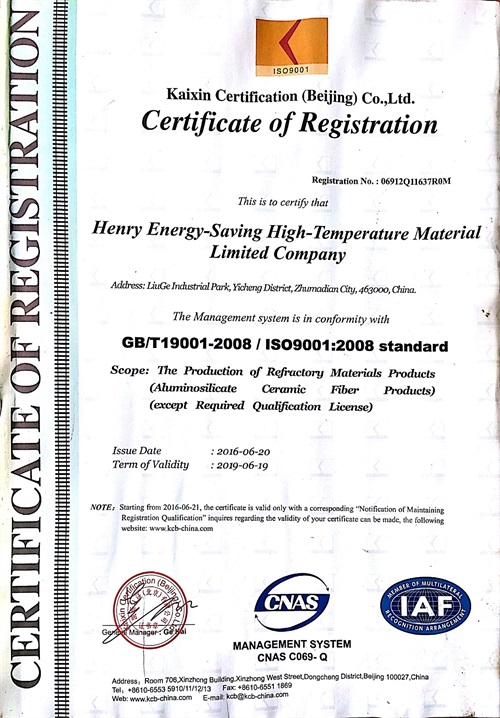

Type of Certification

iso

Reference no.

06912Q11637ROM

Name.

ISO9001:2008

Issued By

KAIXIN CERTIFICATE BEIJING CO LTD

Start Date (validity period)

2016-06-20

End Date (validity period)

2019-06-19


Detailed Description

Descriptions:

Hengrui ceramic fiber block is made of Hengrui ceramic fiber blanket which is folded or cut by experienced professional technicians.We use special equipment for producing module to confirm the precise dimensions and keep smooth surface of module, and then be applied to the lining of various thermal equipment. The products have some characteristics such as reliable quality, quick installation, superior insulation properties.

Hengrui ceramic fiber block use the enhanced M-type anchors, which have greater strength, closer to the cold face. It can make sure the strength in high temperature. The fixed link was welding together with the high quality heat-resistance steel and stamping butterfly plate. The two round fixed link were embedded in the module system, enlarged the bearing area and ensured the firm of anchor system.

Characteristics:

Low bulk density,low thermal conductivity.
Resistance to heat-shock, ability to resist the scouring of airflow.
Excellent mechanical strength ,built-in anchor, safety performance.
Easy to install. after installing the lining form a seamless space, good insulation effect.

Applications:

Ceramic Industry:Tunnel kiln, shuttle kiln, roller kiln.
Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
Iron and Steel Industry: Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace，hot air and flue pipes etc.
Green energy industry：Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.

Technical Index:

Ceramic Fiber block		HR1050	HR1260ST	HR1260HP	HR1350 HA	HR1430Zr	HR1600 PMF
Classification Temperature (℃)		1050	1260	1260	1350	1430	1600
192kg/m3/at( )℃/24h Linear Shrinkage Rate(%)		≤2.0 850℃	≤2.0 1000℃	≤2.2 1050℃	≤2.2 1100℃	≤2.5 1200℃	≤1.5 1450℃
Density(KG/M3)		172-240	172-240	172-240	172-240	172-240	172-240
Thermal Conductivity Rate(W/m.k)	400℃	0.08	0.08	0.08	0.08	0.08	-
	600℃	0.15	0.15	0.15	0.12	0.12	0.12
	800℃	0.22	0.20	0.19	0.18	0.16	0.15
	1000℃	-	-	0.22	0.12	0.19	0.18
Chemical Composition(%)	Al2O3	42-44	45-46	47-49	52-55	38-44	72-75
	Al2O3+SiO2	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0	≥99.0
	ZrO3	-	-	-	-	15-17	-
	Other	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0	≤1.0

The result is average value not guarantee value,fluctuate within the standard value, for more details about our products properties or technical support, please contact Hengrui Technical Department .
