Design Sketch Non Metallic Materials Laser Cutter 100W /120W 1
Posting date : Aug 27, 2016
Membership
Free Member Scince Aug 25, 2016
FOB Price
4560
Min. Order Quantity
1
Supply Abillity
99
Port
shenzhen
Payment Terms
L/C T/T D/P Western Union Paypal Money Gram
Package
wooden
Keyword :
Category
Contact
peter
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
sunylaser
HS-CODE
8411-22
Package & Delivery Lead Time
Package
wooden
Detailed Description

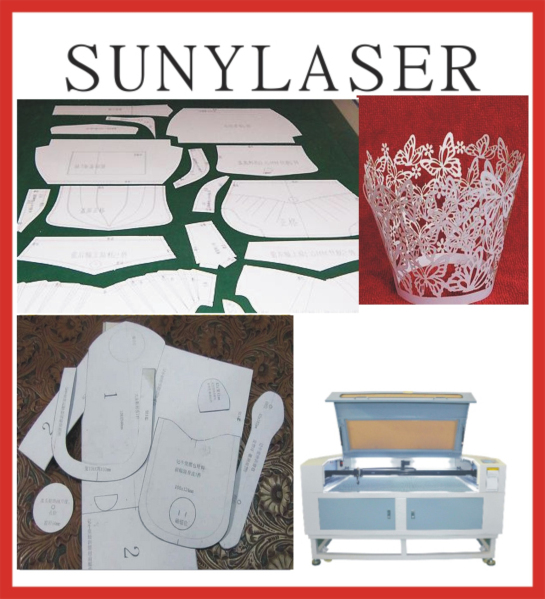

Basic Info.Model NO.:SUNY-1680
 Application:Home Appliance, Textile Machinery, Automotive Industry, Shoemaking Industry, Woodwork Industry, Advertising Industry, Clothing Industry, Shoe IndustryCooling System:Water Cooling Technical Class:Continuous Wave LaserApplicable Material:Nonmetal Structure Type:Gantry TypeLaser Classification:CO2 Laser Laser Technology:Laser Cutting and Laser EngravingWorking Area:1600*1000mm Laser Power:60W/80W/100W/130W/150WLaser Tube Lifespan:6000hours Machine Size:2150*1560*1150mmMachine Weight:320kg Color:AnyCertificate:CE FDA Speed:800mm/SLead Time:5 Working Days Export Markets:GlobalAdditional Info.Trademark:SUNYLASER Packing:Plywood CaseStandard:CE FDA Origin:ChinaHS Code:8456100090 Production Capacity:300sets/MonthProduct DescriptionDetailed configuration: A. United States imported fully stepper motor and drive systems B. SUNYLASER control system C. Foreign imports in six balanced linear guideway D. Dual transmission of USB2.0 E. Chines,English, German LCD, Humanity button panels F. Homemade CO2 laser tubeG. Optical system uses laser Singapore imports all lenses H. High strength stainless Rail cellular integration backplane I. Chassis integration structure J. Support U-download data Detailed functions:                                 1. Cut optimal cutting path, the shortest path can work, save time, improve efficiency 2. Chines,English, German big-screen LCD display, users can randomly access to stored documents, human convenient 3. System transfer graphics data, a simple layout editor (such as zooming and rotating, reproduction, etc. 4. Output data can be layered on each floor can separate definition output, the output speed, laser approach (sculpture, cutting), and the definition of parameters for each automatic preservation. 5. The images can be carved, right vector for line drawing, cutting and engraving, sculpture and accuracy can be erected. 6. USB data transmission, but also U-operation, can work off-line, easy to operate, fast. Specifications:
Control system: DSP control system
Laser type: Sealed CO2 glass laser tube
Working area:  1600*1000mm(62.99*39.37inch)
Work platform: Honeycomb platform
Laser power:  60w/80w/100w/130w/150w
Pass-thru doors: Allow to cut extremely long materials(max thickness 40mm)
Interface: USB connection ( Work in Windows XP, 2000,Vista,7)
Memory: 64Mb Buffer Memory
Driver system: Stepper motor
Auxiliary equipments: Exhaust-fan, air-exhaust pipe
Laser Tube life hours:  6000 Hours
Repeating precision: ±0.05mm
Moving system:  CNC controlling units
Cooling mode:  Water-cooling and protection system
Max speed: 600mm/s for engraving, 300mm/s for cutting
Working voltage:  AC110/220±10% 50/60Hz
Whole power:  <1250W
Operating temperature:  0-45°C(32° - 113° F)
Operating humidity:  5%-95%
Controlling software:  Original sunylaser software
Graphic format supported:  BMP,PLT,AI,DXF,DST,JPG,CDR,HPGL,PNG,DSB,GIF,MNG, TIF,TGA,PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW etc
Compatible software:  Auto CAD, CoreIDraw X2/X3/X4, photoshop etc
Resolution: 4000DPI
Machine dimension: 2150*1560*1150mm
Packing dimension: 2240*1600*1290mm
Net weight:  320kg
Gross weight: 400kg
Packing: Plywood case
Standard accessories:1) 2×Air pumps/compressors for Air Assist ( for blowing off debris as the laser engrave or cut)2) 1×Exhaust fans/Blower with Tube ducts (install inside machine)3) 2×Industrial chillers 4) 2×Water protections(make sure the water cycle is normal)5) 1×USB Cable (connecting PC and laser)6) 1×DVD (including software, user manual, guiding videos etc)7) 2×Power cables8) 1×Tool box Optional accessories:1) Motorized up and down worktable(used to engrave thick materials). 2) High resolution(for engraving extremely high quality photos, even 3D photos).                         3) Rotary (for engraving round items). 4) Auto focus(help to get the best focus distance).5) New red dot design(make the laser beam visible). 6) High pressure air compressure set(used to cut thick materials).     Shipping:1) We will send the machine in 5 working days to your named seaport or airport.2) We will arrange telex release for you or send original BL to you for customs clearance.3) For shipping purpose, please tell us your phone number and detailed contact  information after you confirm the order. Payment terms:1) We accept LC TT and Paypal etc, if you want to use other ways, please advise us.2) We will start to prepare your order after you make the payment. After-sales Services:1) If you meet any problem or have any question about the machine and software, please  feel free to contact us, we will help you to solve the problems as soon as possible. Warranty:1) The warranty of the whole machine is two years, the laser tube's warranty is six months.2) Laser tube, in six months we will send you free replacement, normally you always can use it for at least one year.3) Other parts, in two years we will send free replacement. 4) Mirror and lens, we will send you extra one lens and two mirrors for free with machine.5) Beyond the date of warranty, we will charge you the replacements.Workable Materials: Wood, Paper, Leather, Cloths, Organic glass, Plexiglass Resin, Acrylic, Woolens, Plastic, Rubber. Ceramic tile, Crystal,Bowler, Bamboo, Marble, Granite, Tile, Delrin, Doublecolor board, Glass, Painted metals, Anodized aluminum, EVA, etc.
  Engrave/Etch/Mark        Cut
Acrylic √
Delrin √
Cloth  √
Leather  √  √
Wood
Mat Board  √  √
Melamine  √  √
Paper  √  √
Mylar  √  √
Pressboard  √  √
Rubber  √  √
Wood Veneer  √  √
Fiberglass  √  √
Plastic  √  √
Cork  √  √
Corian  √  √
Twill  √  √
Anodized Aluminum  √
Painted Metals  √
Tile  √
Glass √
Coated Metals  √
Ceramics  √
Marble  √
Stainless Steel
Brass
Titanium
Bare Metal
