Gas spring strut YS613
Posting date : Aug 19, 2016
Membership
Free Member Scince Aug 17, 2016
FOB Price
$2.49/pc
Min. Order Quantity
1PC
Supply Abillity
500 pcs/day
Port
Guangzhou
Payment Terms
T/T,30% deposit,70% balance before shipment
Package
10PCS/inner box,100pcs/carton
Keyword :
Category
Contact
Candy
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YSWJ
Model Number
YS613
HS-CODE
8302-42
Package & Delivery Lead Time
Package
10PCS/inner box,100pcs/carton
Detailed Description

 Product Description

A、cylinder: seamless steel pipe20#, Φ 15*1mm

B、piston rod: steel 45#, Φ 6mm

C、piston: brassH62,

D、sealing parts: O-ring fluoro rubber,

E、end fittings: PA66,

F、gas: nitrogen,

G、aircraft hydraulic oil ( still work well below 58°)





Features

A、upward opening, two way:

    way 1:  up-opening to 30°,the door lift up by itself.

    way 2:  the door slow down to full opening when the angle up to 80°。



B、closing: down-closing to 50°,the door full close by itself.



Product Advantages

A、Pass SGS test over 100,000times, attenuation less than 10% after 100,000cycles.

B、Finish: metallic paint, scratch resistance, NSS 8grade/48h.

C、aluminum frame and glass door is achieved.





Product Parameter





A、Application: for all up-opening door, still work well between -50°~ 80°.

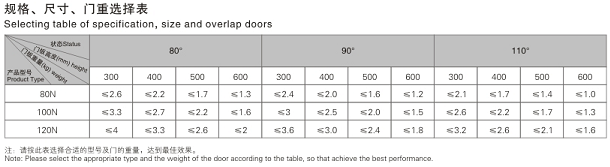

B、Installation conditions: Pls refer to the attached table below.

   a、different choice according to the door weight and door height.

   b、over 600cm * 400cm, paired using is the best.





Others(Packing and Services):

Package: 10pcs/inner box,100pcs/box,

N.W/G.W: 16.9kgs/18.55kgs

MEAS: 34.5cm * 33.2cm * 29.5cm,

Delivery Date: Normally in one month

Samples Preparation: samples can be sent in 3 working days (DHL 3-5days,UPS3-5days,Fedex/TNT 3-5days,EMS 7days reach destination )

Own Appearance Design Patent Certificate





SGS Certificate
