Multi-function crawler excavator

본문 바로가기


Home > Product > Multi-function crawler excavator
Product
Multi-function crawler excavator
Posting date : Aug 18, 2016
Membership
Free Member Scince Aug 11, 2016
FOB Price
USD35000
Min. Order Quantity
1
Supply Abillity
2000
Port
Shanghai
Payment Terms
TT
Package
02/40HQ
Keyword :
Category
Contact
Jack Chen
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
JG
HS-CODE
8429-
Package & Delivery Lead Time
Package
02/40HQ
Detailed Description

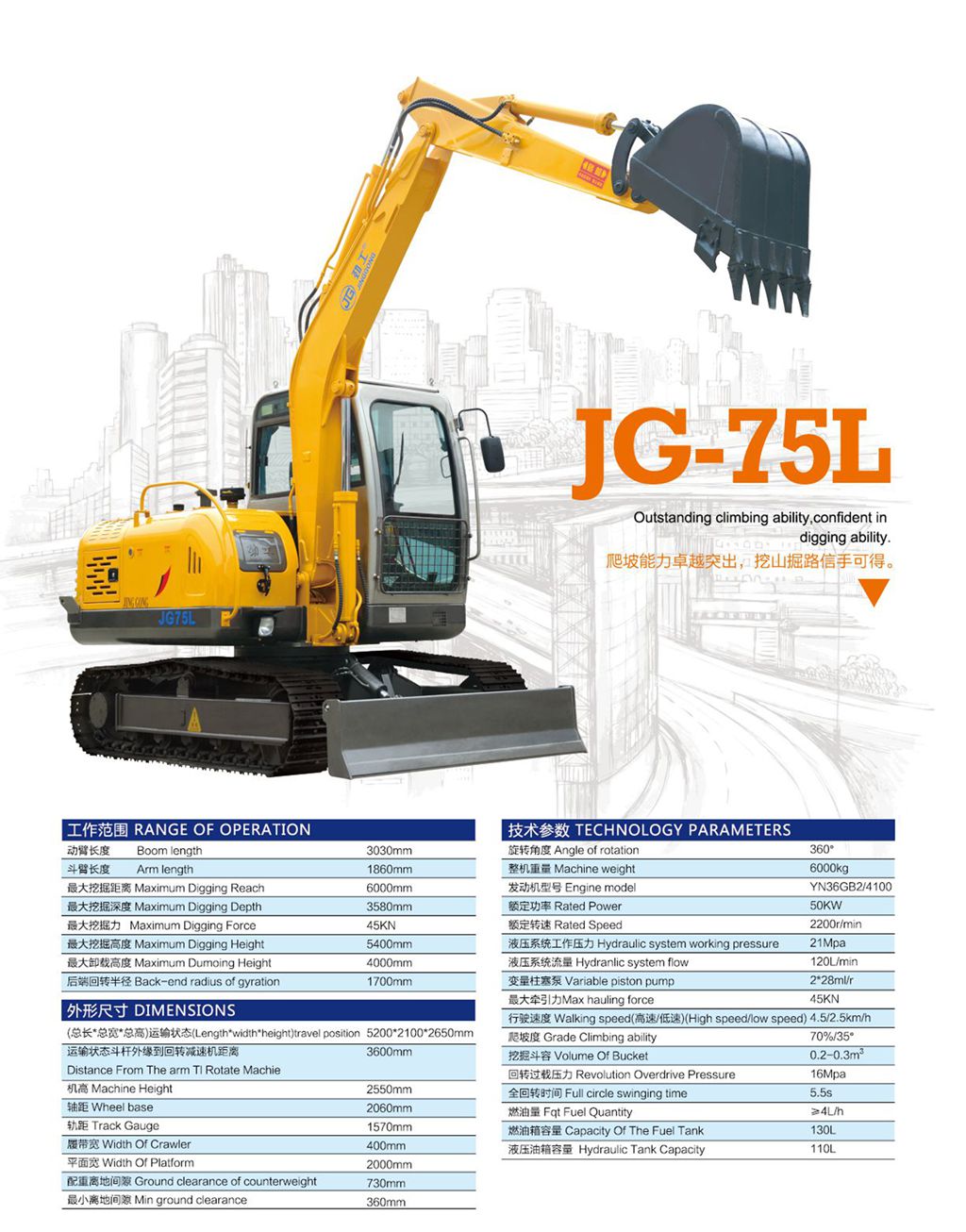

JG75L Tech specification of crawler excavator:
Range of operation
Boom length 3030mm
Arm length 1860mm
Maximum Digging Reach 6000mm
Maximum Digging Depth 3580mm
Maximum Digging Force 45KN
Maximum Digging Height 5400mm
Maximum Dumoing Height 4000mm
Back-end radius of gyration 1700mm
Dimensions
(Length*width*height)travel position 5200*2100*2650mm
Distance From The arm Tl Rotate Machie 3600mm
Machine Height  2550mm
Wheel base 2060mm
Track Gauge 1570mm
Width Of Crawler 400mm
Width Of Platform  2000mm
Ground clearance of counterweight 730mm
Min ground clearance 360mm
Tech performance and specification
Angle of rotation 360°
Machine weight 6000kg
Engine model YN36GB2/4100
Rated Power 50KW
Rated Speed 2200r/min
Hydraulic system working pressure 21Mpa
Hydranlic system flow 120L/min
Variable piston pump 2*28ml/r
Max Hauling force 45KN
Walking speed(High speed/low speed) 4.5/2.5km/h
Grade Climbing ability 70%/35°
Volume Of Bucket 0.2-0.3m3
Revolution Overdrive Pressure 16Mpa
Full circle swinging time 5.5s
Fqt Fuel Quantity  ≥4L/h
Capacity Of The Fuel Tank 130L
Hydraulic Tank Capacity  110L
