Tungsten carbide nail cutter tools
Posting date : Aug 17, 2016
Membership
Free Member Scince Aug 13, 2016
FOB Price
$60/KG
Min. Order Quantity
10KG
Supply Abillity
100KGS
Port
SHANGHAI
Payment Terms
L/C D/A D/P T/T Western Union MoneyGram
Package
EXPORT STANDARD
Keyword :
Category
Contact
Lory
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
UKO
HS-CODE
8437-80
Package & Delivery Lead Time
Package
EXPORT STANDARD
Detailed Description

Tungsten carbide nail cutter tools



1/ GENERAL INTRODUCTION OF CARBIDE NAIL TOOLS



With more than 16 years experience of tool manufacturing in carbide and steel material for nail machines.

In this period,we have gained a good knowledge of the machine types for which these tools are supplied,

as well as the expertise to know which grade of carbide best suits each tool type.



Tools for nail making machine are:



Gripper dies

Cutter dies

Header dies





2/GRADE AND APPLICATION



Grade ISO Density TRS Hardness Performance & Application Recommend
G/Cm3 N/mm2 HRA
YG11C K40 14.35 2200 87.6 Forming or stamping dies for metal powders and nonmetal powders
YG15C K40 14 2500 85 Punching & stamping tools under large stress
YG18C K40 13.7 2700 84.5 Impact resistance forging dies,hot-press forging dies and rollers
YG20 K40 13.5 2400 83.5 For various dies made by cold forging,cold stamping and hot forging
YG20C K40 13.4 2600 81-82 Dies for wear resistance or impact resistant application









3/DRAWING OF CARBIDE NAIL TOOLS

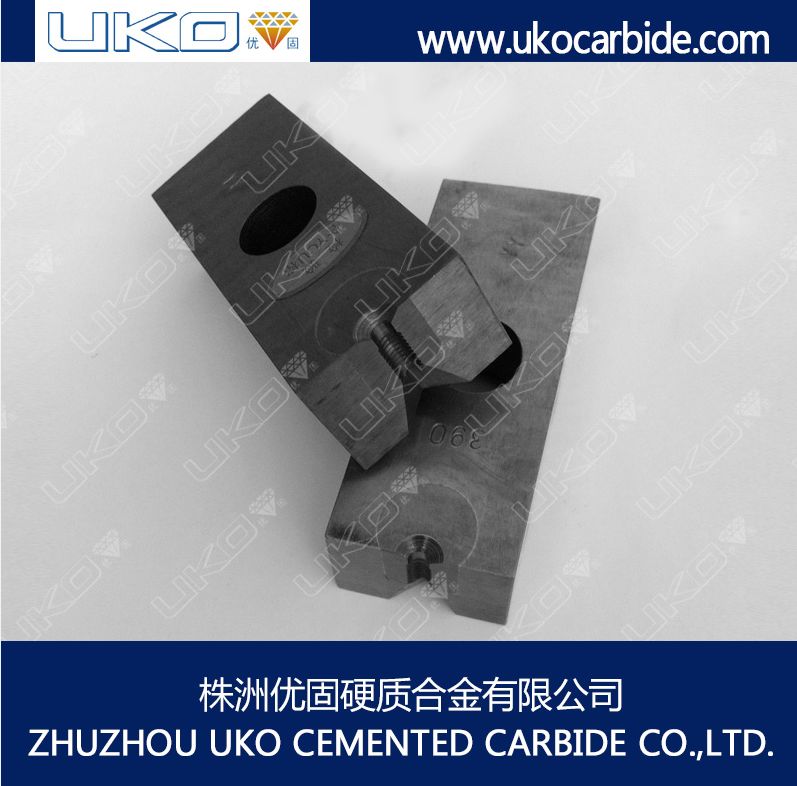

4/PICTURES OF CARBIDE NAIL TOOLS







5/REFERENCE SIZE AND APPLICATION OF CARBIDE NAIL TOOLS



The wire is fed into the nail making machine. The wire is gripped by a pair of gripper dies. While the gripper

dies hold the wire in place, the free end of the wire is struck by a mechanical hammer, which forms the head

of the nail.











A set of shaped cutters strike the other end of the wire. This cutter forms the point of the nail and at the same

time cut the nail from the rest of the wire. The gripper dies release and feed the wire forward for the next nail.

The formed nails are then collected in bins.







THE PICTURES FOR DETAILED APPLICATION





6/PACKING AND SHIPPING FOR CARBIDE NAIL TOOLS









7/CERTIFICATE OF UKO





8/SERVICE OF UKO



1. feedback within 24 hours;

2. good english communication;

3. professional suggestion on product;

4. good traning export sales person;

5. skilled in tungsten carbide sell;

6. could issue the C/O(certificate of origin)to customer to reduce the tax;

 7. could accept all payment terms of T/T(both in advanced and after shipment), D/P, D/A, L/C, western union, paypal and etc;

 8. could offer free samples below 0.5kgs under the condition of freight paid by customer;

9.MOQ 5kgs for sintered blank;





ZHUZHOU UKO CEMTNED CARBIDE CO.,LTD.

Address: Xinhua West Road, Hetang district, Zhuzhou, Hunan, P.R.China  .

Postal code: 41200

Tel: +86-731-28821507

Fax: +86-731-28821527

Mobile: +86-15958514379

skype:lory_huali

Website: www.ukocarbide.com
