Hot Electrostatic Spray Painting Automatic Spraying Machine
Posting date : Aug 10, 2016
Membership
Free Member Scince Aug 08, 2016
FOB Price
598.62USD
Min. Order Quantity
1SET
Supply Abillity
1000
Port
Shanghai
Payment Terms
T/T
Package
Packaging According to Customer's Request
Keyword :
PG1
Category
Contact
Cynthia
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
YX
Model Number
PG1
HS-CODE
8424-90
Package & Delivery Lead Time
Package
Packaging According to Customer's Request
Detailed Description

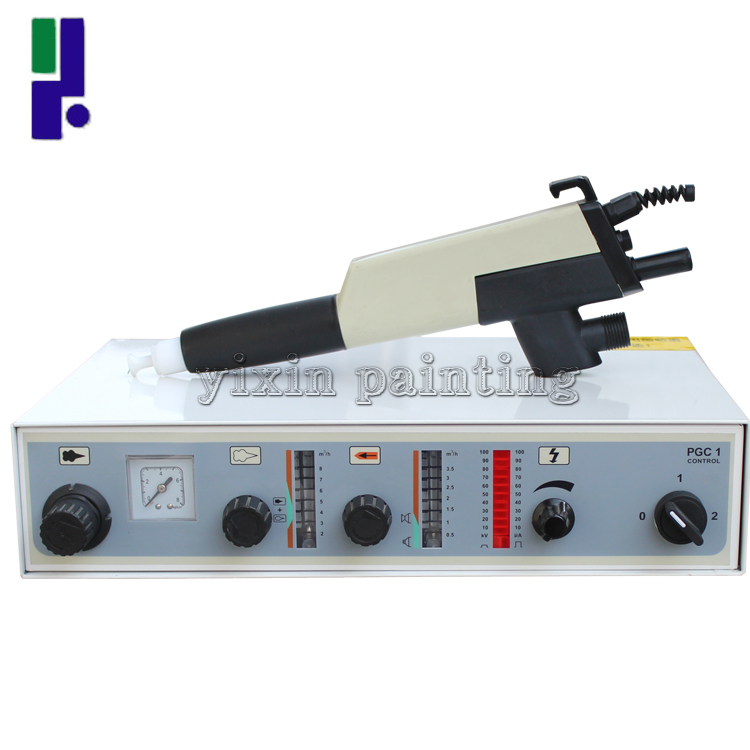

By spray gun for my own open mold development and production company, has a variety of colorsYX-004 Electrostatic powder coating machine:  (PG1) Main data:Input voltage: AC180V-240V/50HZOutput high voltage (gun): 0-110KVInput power: 40WWeight: 30KGAir pressure: 0.5Mpa-0.8Mpa Main configuration:Spray gun * 1 + powder pump * 1 + host * 1+ powder hopper* 1 + trolley * 1 + air pressure control valve * 1+ oil water separator * 1
Host For the powder and gas source Spray gun
Input voltage: 200-240v 50Hz Solenoid valve control voltage: 24VDC Input pressure: ≤0.3Mpa
Input powder: 50W Input pressure: 0-0.6Mpa The volume of the powder: max550g/min
  Output pressure: 0-0.5Mpa Output voltage: 0-100KV
  The largest gas consumption: 13.2m/h (0.4Mpa) Output current: 0-200uA
  Volume of powder barrels: 50L Gun weight: 460g
1,High voltage module near the nozzle, make waste less voltage, high voltage components can be replaced, brings convenience to maintenance.2,Low rotary atomizing air, greatly improving the coating quality.3,Intuitive for powder reasonable two-way flow meter display.4,Low because chooses big flow pneumatic components in smaller airflow pressure, still can achieve higher amount of powder.5,For powder device is full stainless steel, can need not tools can easily remove and clean all parts. 6,Two lines of the design of the central gas, make a needle guide body no longer product powder, strengthened the discharge effect, improve the rate of powder.
