Ceiling panels roll forming machine, roll former, rollers form with hydraulic profile cutter

Product

Ceiling panels roll forming machine, roll former, rollers form with hy...

Posting date : Aug 09, 2016

Click enlarge Image

Membership

Free Member Scince Jul 14, 2016

FOB Price

5000

Min. Order Quantity

Supply Abillity

10000

Port

shanghai

Payment Terms

T/T,D/P,D/A,L/C

Package

carton

Keyword :

roll forming machine

Category

MACHINERY & ELECTRICAL | Nuclear re | Printing m | Machines w

Contact

Yemin Zhang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

BCM

HS-CODE

8443-31

Package & Delivery Lead Time

Package

carton

Detailed Description

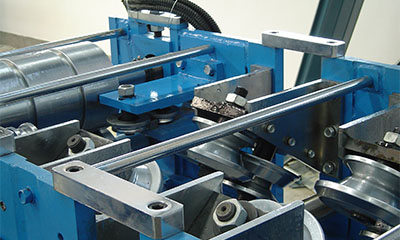

Ceiling panels roll forming machine working flowDecoiling steel sheet →covering film→pre-cutter→Guiding system→Roll forming→Cut to length→Run out tableMachine components A)Decoiler：a)Loading capacity: ≤2Tb)Suitable material ID: φ508mmc)Suitable material width: 300mm d)Suitable material OD: <φ1000mme)Manual passived decoiler B) Main machine forming system:1. Guiding platform It is set in the beginning of the main machine with left-right guiding. It can help the operator to make the sheet in the right direction, left side and right side can be adjusted separately by manual screw structure.2. Pre-cutter systemThis device is use to cut the steel sheet material while the sheet into the roll forming machine and need finish the work.3. Roll forming systemRoll forming system consist of machine frame, transmission parts and roll forming rollers etc. a) Machine frame adopts welding structure with blasting treatment.b) The roller of this line is made of No.45 steel, surface painted with hard chrome, all treated by full CNC precision machines, therefore the roller has good rigidity. c）Roller supporting type: columnd) Electrical motor driving, the back/forward roller driven by chain, part of upper/lower rollers driven by geare) Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet.f) Different thickness and yield stress will get different dimension tolerance.

C) Hydraulic profile cutterThe hydraulic profile cutter could cut the sheet according to preset length. D). Runout system There will be one table to hold the run out panels, 6m length

E). Hydraulic system 1. Hydraulic profile cutter adopts separated inside set hydraulic station 2. Main valve and pump F) .Electrical control system 1. Adopts PLC control technology which can ensure the automatic producing.2. The system provides friendly man-machine interface which can set the batches, plate length, quantity and so on.3. Operation type: Input touch screen+button4. Encoder calculates the number, which has function of calculation and measuring the length.5. Adopt Mitsubishi PLC and inverter.
