Garage Door roll forming machine,roll former ,rollers form with hydraulic profile cutter

본문 바로가기


Home > Product > Garage Door roll forming machine,roll former ,rollers form with hydraulic profile cutter
Product
Garage Door roll forming machine,roll former ,rollers form with hydrau...
Posting date : Aug 09, 2016
Membership
Free Member Scince Jul 14, 2016
FOB Price
5000
Min. Order Quantity
1
Supply Abillity
10000
Port
shanghai
Payment Terms
T/T,D/P,D/A,L/C
Package
carton
Keyword :
Category
Contact
Yemin Zhang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
BCM
HS-CODE
8443-31
Package & Delivery Lead Time
Package
carton
Detailed Description

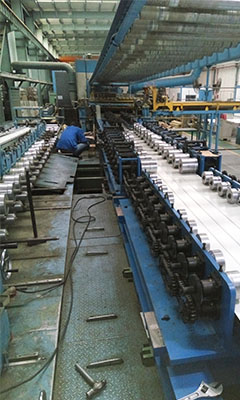

Garage door roll forming machine could make garage door profile steel sheet.It could be used independently or used in whole sandwich panel line. Edge Joint Roll Former Stations (for cassette mounting of tooling) The station consists of both upper and lower forming group being male side,female side.Each group is adjustable by electric screw thread and indicator to allow for width adjustment for each panel type and width.The former groups are driven both top and bottom shafts through gearing .The shafts remain fixed in the machine and rollers are interchangeable are required. The clearance adjustment between top and bottom former pairs by manual screw adjustment. The interlocking joint roll former are supplied hardened (nitride)The profiling station is synchronized to the encoder feed from the bottom double belt press .The maximum standard operation speed of the profiling is 8.9 meters per minute with increased speed capabilities for loading operation.
