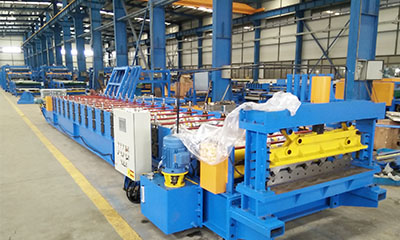

Roll Former,Roof roll forming machine with hydraulic profile cutter used for Making Roof Profile Steel Sheet

Product

Roll Former,Roof roll forming machine with hydraulic profile cutter us...

Posting date : Aug 09, 2016

Click enlarge Image

Membership

Free Member Scince Jul 14, 2016

FOB Price

5000

Min. Order Quantity

Supply Abillity

10000

Port

shanghai

Payment Terms

T/T,D/P,D/A,L/C

Package

carton

Keyword :

Roll Forming Machine

Category

MACHINERY & ELECTRICAL | Nuclear re | Printing m | Machines w

Contact

Yemin Zhang

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

BCM

HS-CODE

8443-31

Package & Delivery Lead Time

Package

carton

Detailed Description

Roof roll forming machine could make roof profile steel sheet.It could be used independently or used in whole sandwich panel line. The main composing:1. Guiding platform There is in the beginning of the main machine with left-right guiding. It can help the operator to make the sheet in the right direction, left side and right side can be adjusted separately by manual screw structure.2. Pre-slitting systemThis device is mainly use to save the material while change the material.3. Roll forming systemRoll forming system consist of machine frame, transmission parts and roll forming rollers etc. a) Machine frame adopts welding structure with blasting treatment.b) The roller of this line is made of No.45 steel, surface painted with hard chrome, all treated by full CNC precision machines, therefore the roller has good rigidity. c）Roller supporting type: columnd) Electrical motor driving, the back/forward roller driven by chain, part of upper/lower rollers driven by geare) Adjust the screw bar manually to adjust the distance between upper/lower rollers for difference thickness of sheet, scale will be mounted in the machine.f) Different thickness and yield stress will get different dimension tolerance.g) The station consists of both right and left forming group being male side, female side.

4. Post cutting system a) Adopts post cutting, the cutting blade material is Cr12 with quenched treatment, after cutting, there is less material wasted. b) Adopts welded frame for good rigidity.c) The power of cutting is provided by hydraulic station.
