High quality 936 front loader 3t wheel loader with CE

Product

Posting date : Aug 02, 2016

Click enlarge Image

Membership

Free Member Scince Jul 14, 2016

FOB Price

negotiable

Min. Order Quantity

1 Piece/Pieces

Supply Abillity

1000 Piece/Pieces per Year

Port

Qingdao

Payment Terms

L/C,T/T

Package

1 unit in 1'40GP;3 units in 2 '40GP

Keyword :

wheel loader

Category

MACHINERY & ELECTRICAL | Nuclear re | Self-prope | Self-prope

Contact

Cui

0 likes

Product Detail

Company Info

Quick Detail

Place of Origin

China [CN]

Brand Name

honorsun

Model Number

HZM936

HS-CODE

8429-51

Package & Delivery Lead Time

Package

1 unit in 1'40GP;3 units in 2 '40GP

Delivery Lead Time

Shipped in 20 days after payment

Specifications

Type of Certification

Start Date (validity period)

0000-00-00

End Date (validity period)

0000-00-00

Detailed Description

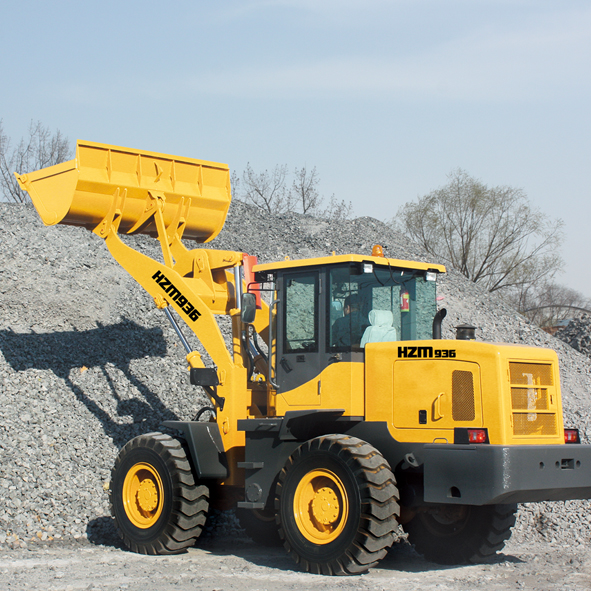

front end loader adot advanced tech. various optional tools fully hydraulic control Deutz offer powerful work

Specifications of HZ936 Komatsu loader

Specification	overall weight(kg)	9500
	L×W×H(mm)	7050×2430X3120
	rated bucket capacity(m3)	1.7
	Rated load(kg)	3000
	Maximum dump height (mm)	3020/3250
	Bucket indicator	Yes
	Max. breakout force(KN)	138
Engine	Model	Deutz TD226B/Cummins 6BT5.9-C125
	Type	In line,direct injection, four-stroke,liquid cooled
	Rated power(kw)	92kw
	Rated speed(r/min)	2200
Transmission system	Model of torque converter	YJ320B
	Type	single-phase single-stage radial-inward turbine triplex
	Gearbox type	Fixed-spindle power shift
	Gear shift	2 gears ahead,2 gear astern
Hydraulic system	Distribution of work valve	DF25
Hydraulic system	Working pump	CBGj2100,CBGq2100
Steering system	Type	Articulated hydraulic steering
	Max. turning angle	lift and right 36.5±1°
	Min turning radius(mm)	5862
Brake system	Brake type	air-break brake
Tyres	Standard tyres	17.5-25

1.Equipped with weichai DEUTZ engine, optional Cummins engine .

2.high quality self-made hydraulic gearbox and driving axle.3.choose best hydraulic components, pilot operation, easy and durable.4.strong and durable frame, have the automatic flat function in high place. 5.(quick change )option attachment: wooden fork, pipe, pallet fork, grass fork,snow blade, bigger bucket, snow bucket, mixing bucket etc6.luxurious cab, easy to keep and operate.7.changeable luxurious meter, air conditioner, back camera, more comfortable for driving.8.according to clients request, customize higher dumping and longer arm products.
