High Speed 6colors Flexographic Printing Machine (YT-H)

본문 바로가기


Home > Product > High Speed 6colors Flexographic Printing Machine (YT-H)
Product

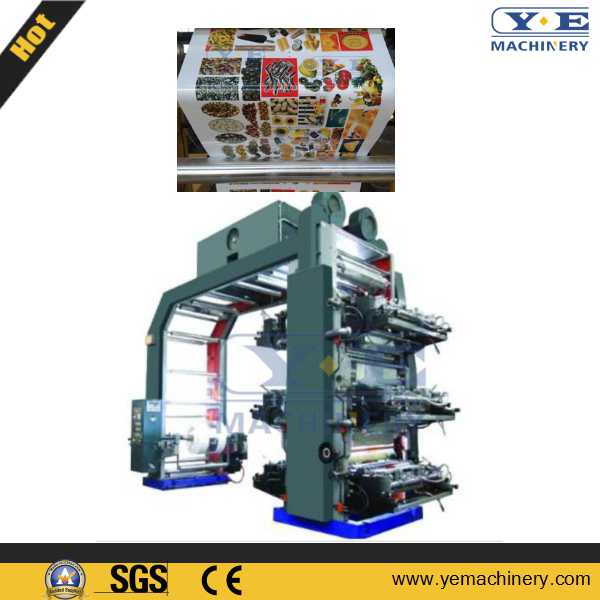

High Speed 6colors Flexographic Printing Machine (YT-H)
Posting date : Jul 27, 2016
Membership
Free Member Scince Jul 27, 2016
FOB Price
USD13999
Min. Order Quantity
1set
Supply Abillity
20sets Flexo Printing Machine Per Month
Port
NINGBO PORT
Payment Terms
TT/LC/Western Union/Money Gram
Package
Wrap with Film,Fix in Container
Keyword :
Category
Contact
kelly wang
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
Y.E
Model Number
YT-6600H/6800H/61000H
HS-CODE
8443-16
Package & Delivery Lead Time
Package
Wrap with Film,Fix in Container
Delivery Lead Time
30days
Detailed Description
Use:
High speed Six color flexographic printing machine is introduced sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene, poly-proplene bag, cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag, etc.
Features:
1. The meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.
2. Easy operation,flexible starting accurate colour register.
3. Lift and lower the printing plate cylinder manually,It will automatically stir the printing ink after lifting
4. The printing ink is spread by the knurled cylindder with even ink colour.
5.Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6.360° continuous and adjustable longitudinal register device.
7.The imported frequency control of motor speed adapts to different printing speeds.
8. There are inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Parameters:
Model of Machine YT-6600 YT-6800 YT-61000
Max.Width of Printing Material 600mm 800mm 1000mm
Max.Printing With 560mm 760mm 960mm
Length Range of Printed Product 191-914mm 191-914mm 191-914mm
Max.Diameter of Roll Material φ450mm φ450mm φ450mm
Printing Speed 10~70m/min 10~70m/min 10~70m/min
Thickness of plate(Including Two-sides Glue Paper) 2.38mm 2.38mm 2.38mm
Total Power 20kw 22kw 25kw
Weight of Machine 3800kg 4500kg 5300kg
Overall Dimensions 3900*1660*2950mm 3900*1860*2950mm 3900*2060*2950mm
