Arabia Haji Tent Ramadan Tent for wedding
0 likes
China [CN] 1. Application of Pagoda Tent:The pagoda tent can be widely used for the weddings, parties, exhibition, , festivals celebrations, cafe shop, restaurants, corporate events, or other events, etc
2. Specification for the Pagoda Tent PAG series:
For details, pls refer to below chart:
Main frame profile size for PAG series: 64.5X64.5X2.5mm (From 3m to 6m) & 120X68X3mm (8m & 10m)Wind load: 80km/h

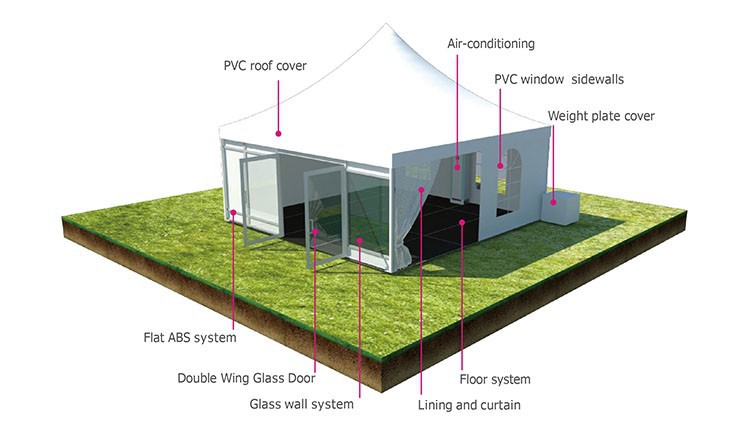

3. Optional Accessories of Chinese Pagoda Tent:Ground anchor, anchor puller, weight plate, glass door, fire door, glass wall, ABS hard wall, lining, flooring system, clear PVC windows, ramp, transport rack etc.
4. Materials of Chinese Pagoda Tent:Fabric: Double PVC coated polyester fabric, 750-900g/sq. M, water proof, UV resistance, fire retardant according to standard NFPA701, CFM & DIN4102 B1/M2Frame: Hard pressed extruded aluminum 6061/T6, anodized surface finishing.Connections: Hot-DIP galvanized
5. Color available: White, red, yellow, blue, green, black, grey, transparent etc
6. Products certificates:Fabric: Test reports for the fire retardant, standards: NFPA701, CFM & DIN4102 B1/M2Structure safety: Certificates by the registered engineers in the U. S. A & Australia.
7. Why Choose Us1) The first tent manufacturer in China- Focus on tent industry for 17 years.2) The largest tent manufacturer in China which covers 30, 000sqm and includs 20, 000sqm building area.3) The most reliable tent supplier and the biggest tent exporter in China.4) Engieer’s company, we concern more about the quality and service. <o: P>
| Pagoda Tent Series | |||||||
| Model No. | Width (m) | Length(m) | Eave height (m) | Ridge height (m) | One 20 feet container can load (sets) | Wind load | Aluminum main profile |
| PAG 2m/210 | 2 | unlimited | 2.1 | 3.35 | 100 to 130 |
80km/h0.3kn/sqm |
55x55x2mm |
| PAG 2.5m/210 | 2.5 | unlimited | 2.1 | 3.63 | 98 to 120 | ||
| PAG 3m/210 | 3 | unlimited | 2.1 | 3.88 | 88 to 114 | ||
| PAG 3m/250 | 3 | unlimited | 2.5 | 4.3 | 88 to 114 | 65x65x2.5mm | |
| PAG 4m/250 | 4 | unlimited | 2.5 | 4.8 | 65 to 90 | ||
| PAG 5m/250 | 5 | unlimited | 2.5 | 5.43 | 56 to 79 | ||
| PAG 6m/250 | 6 | unlimited | 2.5 | 5.92 | 47 to 70 | ||
| PAG 8m/260 | 8 | unlimited | 2.6 | 5.36 | 15 to 18 | 122x68x3mm | |
| PAG 10m/260 | 10 | unlimited | 2.6 | 6.38 | 13 to 15 | ||
| Every set of gazebo includes: Aluminum frame, roof cover, four sidewalls without clear windows | |||||||
| General Package: 1. Aluminum Frame–membrane film 2.Hardware–solid carton box 3. Tent cover–PVC carry bag. | |||||||
| 20 feet container: Inner size: 5.69×2.13×2.18m; Usable Volume: 24-26CBM; Allowed Weight: 17.5 ton | |||||||

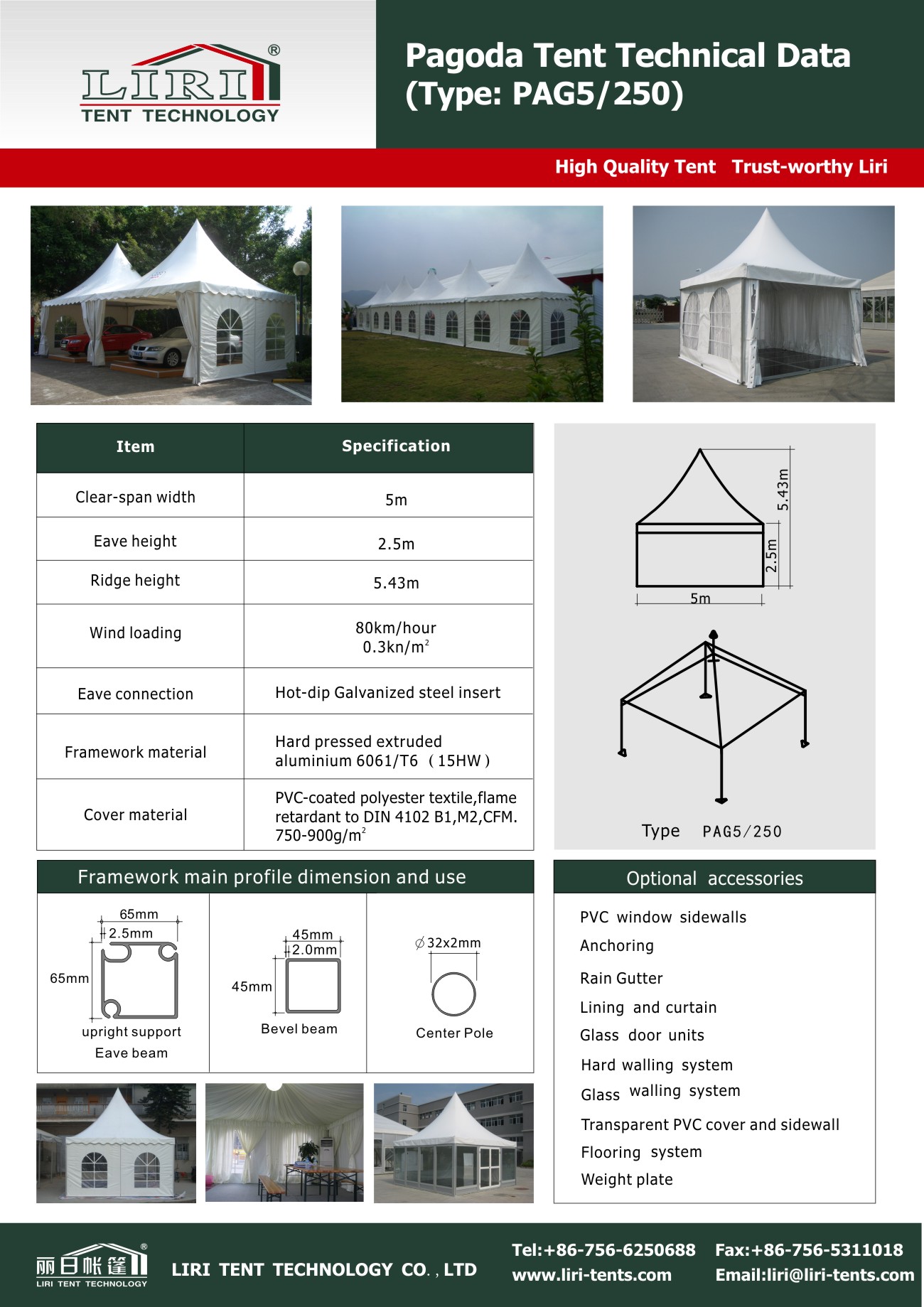

Click enlarge Image
