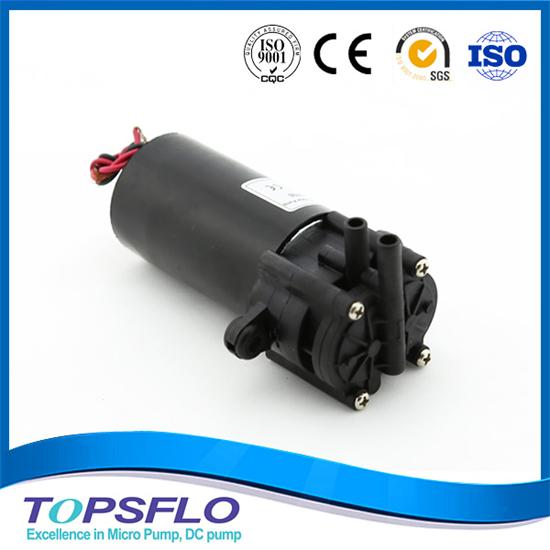

12/24v self-priming brush DC gear pump

본문 바로가기


Home > Product > 12/24v self-priming brush DC gear pump
Product
12/24v self-priming brush DC gear pump
Posting date : May 02, 2016
Membership
Free Member Scince Mar 07, 2016
FOB Price
8usd/pcs
Min. Order Quantity
100pcs
Supply Abillity
100000 Piece/Month
Port
Shanghai, Shenzhen
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
Package
standard
Keyword :
Category
Contact
Emma
          0 likes
Product Detail
Company Info

Quick Detail
Place of Origin
China [CN]
Brand Name
topsflo
Model Number
TG02
HS-CODE
8413-11
Package & Delivery Lead Time
Package
standard
Specifications
Start Date (validity period)
0000-00-00
End Date (validity period)
0000-00-00
Detailed Description

12/24v dc wine self-priming pump



Product Description







1. Working principle :dc gear pump







2. Structure: gear structure; wear-resistant, corrosion-resistant



3. The products use brush motors, Products using the brush motor driver, small size,high pressure



4. Fluid : A variety of liquid and oil

    Temperature: -10 °C ≤ T ≤ 100 °C (except for the freezing)



5. Material: PPS gears, PPS pump head



6. Applicable to the interruption media transmission





Product Features



Small size, high pressure



Excellent self-priming,



Smooth, Pulseless Delivery



Easy to Service



Chemical resistance



DC Motor drive.







Other Application areas



Widely used sanitary ware,,spray,ice-making machines,drinking fountains,lab,Humidifier, medical equipment,Food Grade, etc.





Dimension (mm)    1 inch=25.4mm                                                                          Specification:



Model Item Number               Max Flow (L/Min) Max Pressure (Bar) Rated Voltage     (V) Voltage Scope     (V) Power (W) Suction Height       ( M)
  TG-02S-12-017 1.7 1.5 DC12 5~14 12 0.3M
TG-02S TG-02S-24-017 1.7 1.5 DC24 8~26 12 0.3M
  TG-02S-24-03 3 3 DC24 8~26 20 0.5M

  TG-02B-12-015 1.5 2 DC12 5~14 35 0.4M
TG-02BT TG-02B-12-025 2.5 3 DC12 5~14 40 0.6M
TG-02BZ TG-02B-24-015 1.5 2 DC24 8~26 35 0.4M
  TG-02B-24-025 2.5 3 DC24 8~26 40 0.6M



Note:

1. TG-02S and TG02B with the same pump head, in motor size TG02B a little bigger with length of 104mm,width of 38mm.

2. TG02B lifetime reference is 800hours, TG02S lifetime reference is 400hours.

3. TG02B noise slightly slower.
